Fronius GEN24 Plus mit Smartmeter

vuffiraa · Beitrag von **vuffiraa** » Fr Aug 13, 2021 4:56 pm

Nick hat geschrieben: ↑Fr Aug 13, 2021 3:03 pm Ich habe genau diese Einstellungen aber nach wie vor keine Daten. Ich vermute stark, dass sich in der API des WR etwas verändert hat. Ein entsprechender Eintrag im Changelog lässt so etwas vermuten.
Wäre interessant zu wissen, ob jemand mit dem gleichen SW Stand des WR Daten in der openWB sieht.

Changelog
Gen24 Inverter Software
Version 1.12.5-0

Mit der API vom WR ist alles in Ordnung. Wie geschrieben, ich habe einen Dummy-Server bei mir aufgesetzt, der deine Werte an die oWB auf meinem Raspi liefert. Der Graph sieht halt dadurch sehr konstant aus

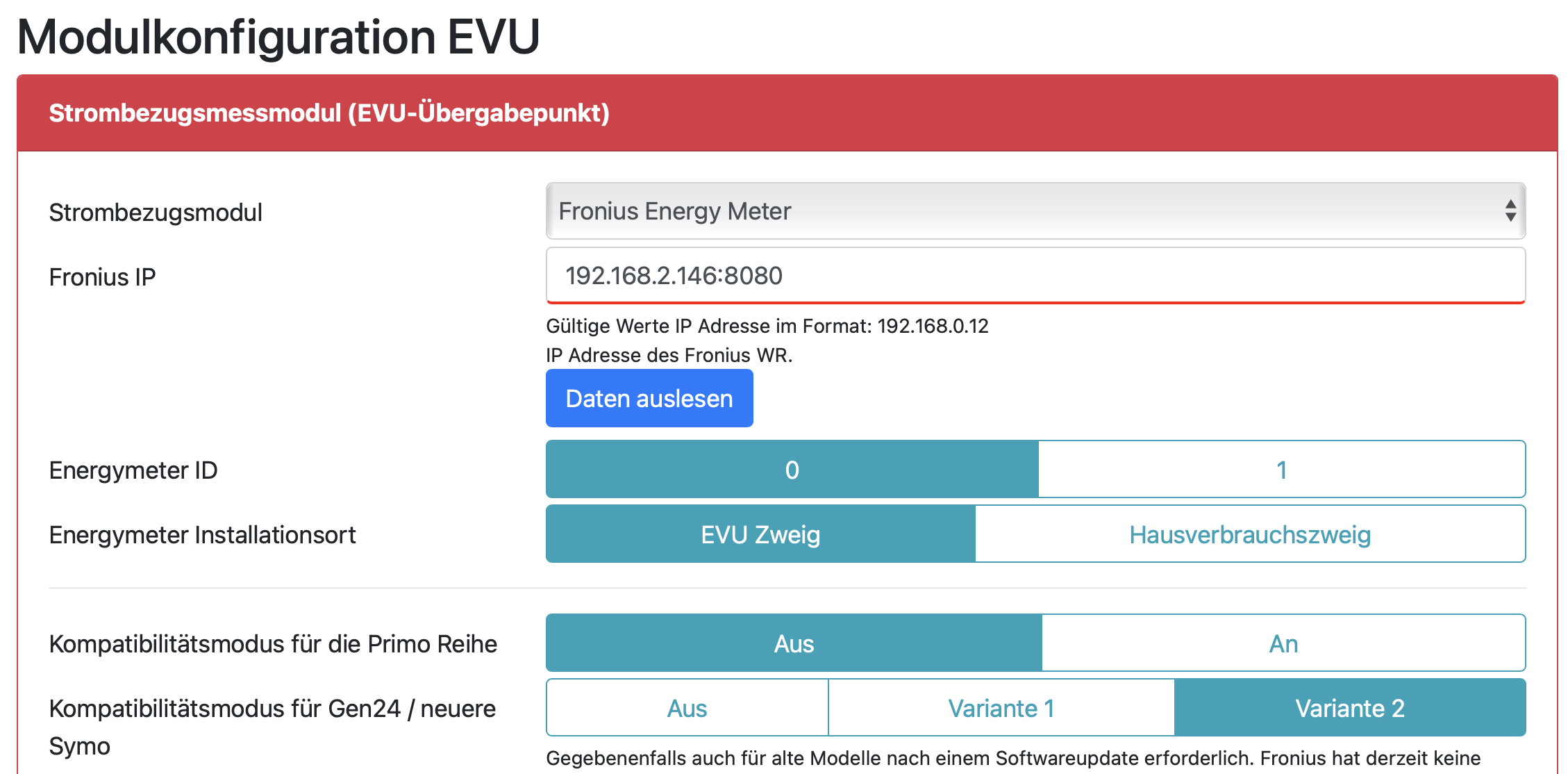

Hier die Konfiguration dazu, die IP Adressen sind auf den Dummy-Server umgebogen:

Wenn du unter Einstellungen / System / Debugging den Debug-Mode auf Mode 2 stellst, kannst du im Log /var/log/openWB.log die Antworten vom WR sehen:

Code: Alles auswählen

2021-08-13 18:17:01: **** Regulation loop start **** (LV1) at 50 main /var/www/html/openWB/regel.sh
2021-08-13 18:17:02: EVU: response_sm: {
    "Body": {
        "Data": {
            "0": {
                "ACBRIDGE_CURRENT_ACTIVE_MEAN_01_F32": -6.115,
                "ACBRIDGE_CURRENT_ACTIVE_MEAN_02_F32": -6.779,
                "ACBRIDGE_CURRENT_ACTIVE_MEAN_03_F32": -6.826,
                "ACBRIDGE_CURRENT_AC_SUM_NOW_F64": -19.72,
                "ACBRIDGE_VOLTAGE_MEAN_12_F32": 403.6,
                "ACBRIDGE_VOLTAGE_MEAN_23_F32": 400.5,
                "ACBRIDGE_VOLTAGE_MEAN_31_F32": 403.3,
                "COMPONENTS_MODE_ENABLE_U16": 1,
                "COMPONENTS_MODE_VISIBLE_U16": 1,
                "COMPONENTS_TIME_STAMP_U64": 1628662724,
                "Details": {
                    "Manufacturer": "Fronius",
                    "Model": "Smart Meter TS 65A-3",
                    "Serial": "12345678"
                },
...

Nick · Beitrag von **Nick** » Sa Aug 14, 2021 7:43 am

Es kommen einfach keine Daten an. Im Log File ist dann natürlich auch nichts zu finden. Ich habe mal das Log File angehängt.
Kann es sein, dass irgend ein update Prozess nicht läuft? Grüsse Nick

2021-08-14 09:05:01: ##### cron5min.sh started ##### (LV0) at 8 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 09:00:20: ##### cron5min.sh finished ##### (LV0) at 355 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 09:00:20: logfile cleanup triggered (LV1) at 352 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 09:00:19: starting evsecheck (LV1) at 348 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 09:00:19: modbus tcp server not running! restarting process (LV0) at 337 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 09:00:19: external openWB or daemon mode not configured; checking network setup (LV1) at 270 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 09:00:19: smarthome handler is already running (LV1) at 253 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 09:00:19: mqtt handler is already running (LV1) at 244 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 09:00:19: current ip: 192.168.50.122 (LV1) at 239 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 09:00:19: updating daily yield stats (LV1) at 140 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 09:00:19: electricity provider not set up; skipping price update (LV2) at 136 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 09:00:19: Netzschutz konfiguriert; aktuelle Frequenz: 0 (LV1) at 85 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 09:00:18: daily csv updated: /var/www/html/openWB/web/logging/data/daily/20210814.csv (LV1) at 77 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 09:00:18: ##### cron5min.sh started ##### (LV0) at 8 main /var/www/html/openWB/runs/cron5min.sh
2021-08-14 08:59:11: boot done
AH00558: apache2: Could not reliably determine the server's fully qualified domain name, using 127.0.1.1. Set the 'ServerName' directive globally to suppress this message
fix upload limit...OS Buster
not activated, skipping
etprovider...
update broker...
load versions...
display update...
clear warning...

0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
100 41 0 0 100 41 0 539 --:--:-- --:--:-- --:--:-- 539
Dload Upload Total Spent Left Speed
% Total % Received % Xferd Average Speed Time Time Time Current
version...
jq installed...
pymodbus installed...
aiohttp installed...
certifi installed...
docopt installed...
mqtt installed...
packages 2...
Reloading network daemon configuration:: mosquitto.
updating mosquitto config file
mosquitto...
timezone...
evdev installed...
packages 1...
crontab 2...
...changed
apache...
LAN/WLAN...
crontab 1...
mqtt handler...
smarthome handler...
Ramdisk init done.
Trigger update of logfiles...
'mqttwizzarddone' missing: Setting to provided default value '-1'
'mqttwattbezug' missing: Setting to provided default value '-1'
'mqttversion' missing: Setting to provided default value '-1'
'mqttverbraucher2_name' missing: Setting to provided default value 'notset'
'mqttverbraucher2_aktiv' missing: Setting to provided default value '-1'
'mqttverbraucher1_name' missing: Setting to provided default value 'notset'
'mqttverbraucher1_aktiv' missing: Setting to provided default value '-1'
'mqttupdateinprogress' missing: Setting to provided default value '-1'
'mqttu1p3pstandby' missing: Setting to provided default value '-1'
'mqttu1p3psofort' missing: Setting to provided default value '-1'
'mqttu1p3pnurpv' missing: Setting to provided default value '-1'
'mqttu1p3pnl' missing: Setting to provided default value '-1'
'mqttu1p3pminundpv' missing: Setting to provided default value '-1'
'mqttu1p3paktiv' missing: Setting to provided default value '-1'
'mqttstopchargepvpercentagelp2' missing: Setting to provided default value '-1'
'mqttstopchargepvpercentagelp1' missing: Setting to provided default value '-1'
'mqttstopchargepvatpercentlp2' missing: Setting to provided default value '-1'
'mqttstopchargepvatpercentlp1' missing: Setting to provided default value '-1'
'mqttspeicherwattnurpv' missing: Setting to provided default value '-1'
'mqttspeichersocnurpv' missing: Setting to provided default value '-1'
'mqttspeichersocminpv' missing: Setting to provided default value '-1'
'mqttspeichersochystminpv' missing: Setting to provided default value '-1'
'mqttspeicherpvui' missing: Setting to provided default value '-1'
'mqttspeicherpveinbeziehen' missing: Setting to provided default value '-1'
'mqttspeichermaxwatt' missing: Setting to provided default value '-1'
'mqttsofortsocstatlp2' missing: Setting to provided default value '-1'
'mqttsofortsocstatlp1' missing: Setting to provided default value '-1'
'mqttsofortsoclp2' missing: Setting to provided default value '-1'
'mqttsofortsoclp1' missing: Setting to provided default value '-1'
'mqttsocvorhanden' missing: Setting to provided default value '-1'
'mqttsoc' missing: Setting to provided default value '-1'
'mqttsoc1vorhanden' missing: Setting to provided default value '-1'
'mqttrfidakt' missing: Setting to provided default value '-1'
'mqttrestzeitlp3' missing: Setting to provided default value '-1'
'mqttrestzeitlp2' missing: Setting to provided default value '-1'
'mqttrestzeitlp1' missing: Setting to provided default value '-1'
'mqttpvwatt' missing: Setting to provided default value '-1'
'mqttpvbezugeinspeisung' missing: Setting to provided default value '-1'
'mqttpreisjekwh' missing: Setting to provided default value '-1'
'mqttoffsetpv' missing: Setting to provided default value '-1'
'mqttnurpv70dynw' missing: Setting to provided default value '-1'
'mqttnurpv70dynact' missing: Setting to provided default value '-1'
'mqttnlakt_standby' missing: Setting to provided default value '-1'
'mqttnlakt_sofort' missing: Setting to provided default value '-1'
'mqttnlakt_nurpv' missing: Setting to provided default value '-1'
'mqttnlakt_minpv' missing: Setting to provided default value '-1'
'mqttnachtladens1' missing: Setting to provided default value '-1'
'mqttnachtladen' missing: Setting to provided default value '-1'
'mqttminnurpvsoclp1' missing: Setting to provided default value '-1'
'mqttminnurpvsocll' missing: Setting to provided default value '-1'
'mqttminimalstromstaerke' missing: Setting to provided default value '-1'
'mqttminimalapv' missing: Setting to provided default value '-1'
'mqttminimalampv' missing: Setting to provided default value '-1'
'mqttminimalalp2pv' missing: Setting to provided default value '-1'
'mqttmindestuberschuss' missing: Setting to provided default value '-1'
'mqttmaxnurpvsoclp1' missing: Setting to provided default value '-1'
'mqttmaximalstromstaerke' missing: Setting to provided default value '-1'
'mqttlastlademodus' missing: Setting to provided default value '-1'
'mqttlademstats2' missing: Setting to provided default value '-1'
'mqttlademstats1' missing: Setting to provided default value '-1'
'mqttlademstatlp8' missing: Setting to provided default value '-1'
'mqttlademstatlp7' missing: Setting to provided default value '-1'
'mqttlademstatlp6' missing: Setting to provided default value '-1'
'mqttlademstatlp5' missing: Setting to provided default value '-1'
'mqttlademstatlp4' missing: Setting to provided default value '-1'
'mqttlademstat' missing: Setting to provided default value '-1'
'mqttlademkwhlp8' missing: Setting to provided default value '-1'
'mqttlademkwhlp7' missing: Setting to provided default value '-1'
'mqttlademkwhlp6' missing: Setting to provided default value '-1'
'mqttlademkwhlp5' missing: Setting to provided default value '-1'
'mqttlademkwhlp4' missing: Setting to provided default value '-1'
'mqttlademkwh' missing: Setting to provided default value '-1'
'mqtthook3_aktiv' missing: Setting to provided default value '-1'
'mqtthook2_aktiv' missing: Setting to provided default value '-1'
'mqtthook1_aktiv' missing: Setting to provided default value '-1'
'mqttheutegeladen' missing: Setting to provided default value '-1'
'mqtthausverbrauchstat' missing: Setting to provided default value '-1'
'mqtthausverbrauch' missing: Setting to provided default value '-1'
'mqttevuglaettungakt' missing: Setting to provided default value '-1'
'mqttetprovider' missing: Setting to provided default value 'notset'
'mqttetprovideraktiv' missing: Setting to provided default value '-1'
'mqtteinschaltverzoegerung' missing: Setting to provided default value '-1'
'mqttdurchslp1' missing: Setting to provided default value '-1'
'mqttdisplayspeichermax' missing: Setting to provided default value '-1'
'mqttdisplaypvmax' missing: Setting to provided default value '-1'
'mqttdisplayhausmax' missing: Setting to provided default value '-1'
'mqttdisplayhausanzeigen' missing: Setting to provided default value '-1'
'mqttdisplayevumax' missing: Setting to provided default value '-1'
'mqttdatenschutzack' missing: Setting to provided default value '-1'
'mqttdailychargelp3' missing: Setting to provided default value '-1'
'mqttdailychargelp2' missing: Setting to provided default value '-1'
'mqttdailychargelp1' missing: Setting to provided default value '-1'
'mqttaktgeladens2' missing: Setting to provided default value '-1'
'mqttaktgeladens1' missing: Setting to provided default value '-1'
'mqttaktgeladen' missing: Setting to provided default value '-1'
'mqttadaptpv' missing: Setting to provided default value '-1'
'mqttadaptfaktor' missing: Setting to provided default value '-1'
'mqttabschaltverzoegerung' missing: Setting to provided default value '-1'
'mqttabschaltuberschuss' missing: Setting to provided default value '-1'
'mqttRandomSleepValue' missing: Setting to provided default value '-1'
'mqttCp1Configured' missing: Setting to provided default value '-1'
'/var/www/html/openWB/ramdisk/mqttautolockconfiguredlp8' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttautolockstatuslp8' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttdisplaylp8max' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttlp8name' missing: no MQTT topic set: Setting to default of 'Lp8'
'/var/www/html/openWB/ramdisk/mqttmsmoduslp8' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttzielladenaktivlp8' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/boolstopchargeafterdisclp8' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/rfidlp8' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp8sofortll' missing: Setting from MQTT topic 'lp8sofortll' to value '10'
'/var/www/html/openWB/ramdisk/autolockconfiguredlp8' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/autolockstatuslp8' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/restzeitlp8' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp8enabled' missing: no MQTT topic set: Setting to default of '1'
'/var/www/html/openWB/ramdisk/lp8phasen' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/pluggedladungaktlp8' missing: Setting from MQTT topic 'pluggedladungaktlp8' to value '0'
'/var/www/html/openWB/ramdisk/pluggedladunglp8startkwh' missing: Setting from MQTT topic 'pluggedladunglp8startkwh' to value '0'
'/var/www/html/openWB/ramdisk/mqttautolockconfiguredlp7' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttautolockstatuslp7' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttdisplaylp7max' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttlp7name' missing: no MQTT topic set: Setting to default of 'Lp7'
'/var/www/html/openWB/ramdisk/mqttmsmoduslp7' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttzielladenaktivlp7' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/boolstopchargeafterdisclp7' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/rfidlp7' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp7sofortll' missing: Setting from MQTT topic 'lp7sofortll' to value '10'
'/var/www/html/openWB/ramdisk/autolockconfiguredlp7' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/autolockstatuslp7' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/restzeitlp7' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp7enabled' missing: no MQTT topic set: Setting to default of '1'
'/var/www/html/openWB/ramdisk/lp7phasen' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/pluggedladungaktlp7' missing: Setting from MQTT topic 'pluggedladungaktlp7' to value '0'
'/var/www/html/openWB/ramdisk/pluggedladunglp7startkwh' missing: Setting from MQTT topic 'pluggedladunglp7startkwh' to value '0'
'/var/www/html/openWB/ramdisk/mqttautolockconfiguredlp6' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttautolockstatuslp6' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttdisplaylp6max' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttlp6name' missing: no MQTT topic set: Setting to default of 'Lp6'
'/var/www/html/openWB/ramdisk/mqttmsmoduslp6' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttzielladenaktivlp6' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/boolstopchargeafterdisclp6' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/rfidlp6' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp6sofortll' missing: Setting from MQTT topic 'lp6sofortll' to value '10'
'/var/www/html/openWB/ramdisk/autolockconfiguredlp6' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/autolockstatuslp6' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/restzeitlp6' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp6enabled' missing: no MQTT topic set: Setting to default of '1'
'/var/www/html/openWB/ramdisk/lp6phasen' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/pluggedladungaktlp6' missing: Setting from MQTT topic 'pluggedladungaktlp6' to value '0'
'/var/www/html/openWB/ramdisk/pluggedladunglp6startkwh' missing: Setting from MQTT topic 'pluggedladunglp6startkwh' to value '0'
'/var/www/html/openWB/ramdisk/mqttautolockconfiguredlp5' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttautolockstatuslp5' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttdisplaylp5max' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttlp5name' missing: no MQTT topic set: Setting to default of 'Lp5'
'/var/www/html/openWB/ramdisk/mqttmsmoduslp5' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttzielladenaktivlp5' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/boolstopchargeafterdisclp5' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/rfidlp5' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp5sofortll' missing: Setting from MQTT topic 'lp5sofortll' to value '10'
'/var/www/html/openWB/ramdisk/autolockconfiguredlp5' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/autolockstatuslp5' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/restzeitlp5' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp5enabled' missing: no MQTT topic set: Setting to default of '1'
'/var/www/html/openWB/ramdisk/lp5phasen' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/pluggedladungaktlp5' missing: Setting from MQTT topic 'pluggedladungaktlp5' to value '0'
'/var/www/html/openWB/ramdisk/pluggedladunglp5startkwh' missing: Setting from MQTT topic 'pluggedladunglp5startkwh' to value '0'
'/var/www/html/openWB/ramdisk/mqttautolockconfiguredlp4' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttautolockstatuslp4' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttdisplaylp4max' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttlp4name' missing: no MQTT topic set: Setting to default of 'Lp4'
'/var/www/html/openWB/ramdisk/mqttmsmoduslp4' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttzielladenaktivlp4' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/boolstopchargeafterdisclp4' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/rfidlp4' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp4sofortll' missing: Setting from MQTT topic 'lp4sofortll' to value '10'
'/var/www/html/openWB/ramdisk/autolockconfiguredlp4' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/autolockstatuslp4' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/restzeitlp4' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp4enabled' missing: no MQTT topic set: Setting to default of '1'
'/var/www/html/openWB/ramdisk/lp4phasen' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/pluggedladungaktlp4' missing: Setting from MQTT topic 'pluggedladungaktlp4' to value '0'
'/var/www/html/openWB/ramdisk/pluggedladunglp4startkwh' missing: Setting from MQTT topic 'pluggedladunglp4startkwh' to value '0'
'/var/www/html/openWB/ramdisk/mqttautolockconfiguredlp3' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttautolockstatuslp3' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttdisplaylp3max' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttlp3name' missing: no MQTT topic set: Setting to default of 'Lp3'
'/var/www/html/openWB/ramdisk/mqttmsmoduslp3' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttzielladenaktivlp3' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/boolstopchargeafterdisclp3' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/rfidlp3' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp3sofortll' missing: Setting from MQTT topic 'lp3sofortll' to value '10'
'/var/www/html/openWB/ramdisk/autolockconfiguredlp3' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/autolockstatuslp3' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/restzeitlp3' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp3enabled' missing: no MQTT topic set: Setting to default of '1'
'/var/www/html/openWB/ramdisk/lp3phasen' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/pluggedladungaktlp3' missing: Setting from MQTT topic 'pluggedladungaktlp3' to value '0'
'/var/www/html/openWB/ramdisk/pluggedladunglp3startkwh' missing: Setting from MQTT topic 'pluggedladunglp3startkwh' to value '0'
'/var/www/html/openWB/ramdisk/mqttautolockconfiguredlp2' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttautolockstatuslp2' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttdisplaylp2max' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttlp2name' missing: no MQTT topic set: Setting to default of 'Lp2'
'/var/www/html/openWB/ramdisk/mqttmsmoduslp2' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttzielladenaktivlp2' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/boolstopchargeafterdisclp2' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp2sofortll' missing: Setting from MQTT topic 'lp2sofortll' to value '10'
'/var/www/html/openWB/ramdisk/autolockconfiguredlp2' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/autolockstatuslp2' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/restzeitlp2' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp2enabled' missing: no MQTT topic set: Setting to default of '1'
'/var/www/html/openWB/ramdisk/lp2phasen' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/pluggedladungaktlp2' missing: Setting from MQTT topic 'pluggedladungaktlp2' to value '0'
'/var/www/html/openWB/ramdisk/pluggedladunglp2startkwh' missing: Setting from MQTT topic 'pluggedladunglp2startkwh' to value '0'
'/var/www/html/openWB/ramdisk/mqttautolockconfiguredlp1' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttautolockstatuslp1' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttdisplaylp1max' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttlp1name' missing: no MQTT topic set: Setting to default of 'Lp1'
'/var/www/html/openWB/ramdisk/mqttmsmoduslp1' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/mqttzielladenaktivlp1' missing: no MQTT topic set: Setting to default of '-1'
'/var/www/html/openWB/ramdisk/boolstopchargeafterdisclp1' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp1sofortll' missing: Setting from MQTT topic 'lp1sofortll' to value '10'
'/var/www/html/openWB/ramdisk/autolockconfiguredlp1' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/autolockstatuslp1' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/restzeitlp1' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/lp1enabled' missing: no MQTT topic set: Setting to default of '1'
'/var/www/html/openWB/ramdisk/lp1phasen' missing: no MQTT topic set: Setting to default of '0'
'/var/www/html/openWB/ramdisk/pluggedladungaktlp1' missing: Setting from MQTT topic 'pluggedladungaktlp1' to value '0'
'/var/www/html/openWB/ramdisk/pluggedladunglp1startkwh' missing: Setting from MQTT topic 'pluggedladunglp1startkwh' to value '0'
Initializing Ramdisk /var/www/html/openWB/ramdisk
Config file Update done.
Updating /var/www/html/openWB/openwb.conf...
touch: '/var/www/html/openWB/web/backup/.donotdelete' kann nicht berührt werden: Keine Berechtigung
loading config
atreboot.sh started

vuffiraa · Beitrag von **vuffiraa** » Sa Aug 14, 2021 8:33 am

Ich vermisse alle 10 Sekunden ein Log:

Code: Alles auswählen

**** Regulation loop start **** (LV1) at 50 main /var/www/html/openWB/regel.sh

Das wird aber auch nur geschrieben, wenn Debugging aktiv ist.

Hast du die Cron-Jobs entsprechend https://github.com/snaptec/openWB#installation eingerichtet? Das kannst du mit

Code: Alles auswählen

crontab -l

prüfen.

Nick · Beitrag von **Nick** » Sa Aug 14, 2021 9:35 am

Hallo Ulf

Vielen Dank für Deine Geduld. Ich habe den Fehler gefunden. Anstatt die lokale crontab anzupassen, habe ich die globale unter /etc angepasst. Nachdem ich nun die crontab für den Pi user angepasst habe sind nicht nur die Logs da sondern auch alle anderen Daten von der PV Anlage.

Wünsche Dir und allen anderen noch ein schönes Wochenende!
Grüsse Nick

vuffiraa · Beitrag von **vuffiraa** » Sa Aug 14, 2021 1:13 pm

Hallo Nick,

alles gut, Hauptsache es läuft jetzt bei dir. Ich war mit meinem Halbwissen schon ziemlich am Ende und hätte auch nicht mehr viel gewusst, wo man noch schauen sollte.

Außerdem hast du jetzt die Konfiguration so oft durchgespielt, dass es dann bei der echten oWB im Schlaf klappen sollte. Installation und Setup sind da ja nicht notwendig

Grüße und eine sonniges Wochenende,
Ulf

openWB Forum

Fronius GEN24 Plus mit Smartmeter

Re: Fronius GEN24 Plus mit Smartmeter

Re: Fronius GEN24 Plus mit Smartmeter

Re: Fronius GEN24 Plus mit Smartmeter

Re: Fronius GEN24 Plus mit Smartmeter

Re: Fronius GEN24 Plus mit Smartmeter
