Json abfrage PV

[Franco99]

Du hast recht.35 kWh sind es mittlerweile. Ich hatte den Tagesertag dahinter vermutet, aber es ist ja der Gesamtertrag. Die 0.652 kann ich mir auch nicht erklären.

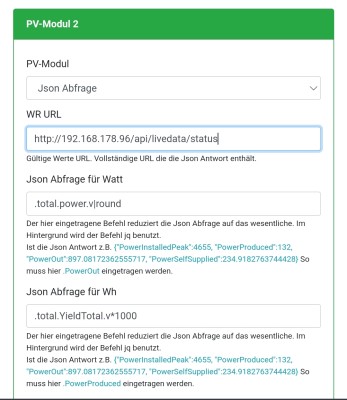

Ich frage mit dem String

http://192.168.178.96/api/livedata/status

ab. Vielleicht liegt da der Fehler. Damit werden mir aber die Werte aus der . txt angezeigt.

[derNeueDet]

Dann ruf das noch mal ab, was hinter der URL kommt und schreib es hier rein. Besser aber als Code Block oben das </> Icon

[Franco99]

Code: Alles auswählen

{"inverters":[{"serial":"116484422211","name":"BKW Gartenhaus","order":0,"data_age":12,"poll_enabled":true,"reachable":true,"producing":true,"limit_relative":37.5,"limit_absolute":600,"AC":{"0":{"Power":{"v":139.6999969,"u":"W","d":1},"Voltage":{"v":231.8000031,"u":"V","d":1},"Current":{"v":0.600000024,"u":"A","d":2},"Power DC":{"v":147,"u":"W","d":1},"YieldDay":{"v":4050,"u":"Wh","d":0},"YieldTotal":{"v":36.04299927,"u":"kWh","d":3},"Frequency":{"v":50.00999832,"u":"Hz","d":2},"PowerFactor":{"v":0.999000013,"u":"","d":3},"ReactivePower":{"v":0.100000001,"u":"var","d":1},"Efficiency":{"v":95.03401184,"u":"%","d":3}}},"DC":{"0":{"name":{"u":""},"Power":{"v":36.29999924,"u":"W","d":1},"Voltage":{"v":41.20000076,"u":"V","d":1},"Current":{"v":0.879999995,"u":"A","d":2},"YieldDay":{"v":1004,"u":"Wh","d":0},"YieldTotal":{"v":8.258000374,"u":"kWh","d":3},"Irradiation":{"v":8.344827652,"u":"%","d":3}},"1":{"name":{"u":""},"Power":{"v":37.20000076,"u":"W","d":1},"Voltage":{"v":41.09999847,"u":"V","d":1},"Current":{"v":0.899999976,"u":"A","d":2},"YieldDay":{"v":1021,"u":"Wh","d":0},"YieldTotal":{"v":8.718999863,"u":"kWh","d":3},"Irradiation":{"v":8.551724434,"u":"%","d":3}},"2":{"name":{"u":""},"Power":{"v":36.40000153,"u":"W","d":1},"Voltage":{"v":41.29999924,"u":"V","d":1},"Current":{"v":0.879999995,"u":"A","d":2},"YieldDay":{"v":1006,"u":"Wh","d":0},"YieldTotal":{"v":9.218000412,"u":"kWh","d":3},"Irradiation":{"v":8.367815971,"u":"%","d":3}},"3":{"name":{"u":""},"Power":{"v":37.09999847,"u":"W","d":1},"Voltage":{"v":41.29999924,"u":"V","d":1},"Current":{"v":0.889999986,"u":"A","d":2},"YieldDay":{"v":1019,"u":"Wh","d":0},"YieldTotal":{"v":9.847999573,"u":"kWh","d":3},"Irradiation":{"v":8.528735161,"u":"%","d":3}}},"INV":{"0":{"Temperature":{"v":25,"u":"°C","d":1}}},"events":1}],"total":{"Power":{"v":139.6999969,"u":"W","d":1},"YieldDay":{"v":4050,"u":"Wh","d":0},"YieldTotal":{"v":36.04299927,"u":"kWh","d":3}},"hints":{"time_sync":false,"radio_problem":false,"default_password":false}}

[Franco99]

Code: Alles auswählen

{"inverters":[{"serial":"116484422211","name":"BKW Gartenhaus","order":0,"data_age":0,"poll_enabled":true,"reachable":true,"producing":true,"limit_relative":37.5,"limit_absolute":600,"AC":{"0":{"Power":{"v":29.39999962,"u":"W","d":1},"Voltage":{"v":230.1999969,"u":"V","d":1},"Current":{"v":0.119999997,"u":"A","d":2},"Power DC":{"v":30.80000114,"u":"W","d":1},"YieldDay":{"v":4108,"u":"Wh","d":0},"YieldTotal":{"v":36.10100174,"u":"kWh","d":3},"Frequency":{"v":50,"u":"Hz","d":2},"PowerFactor":{"v":0.999000013,"u":"","d":3},"ReactivePower":{"v":0,"u":"var","d":1},"Efficiency":{"v":95.45453644,"u":"%","d":3}}},"DC":{"0":{"name":{"u":""},"Power":{"v":7.800000191,"u":"W","d":1},"Voltage":{"v":38.90000153,"u":"V","d":1},"Current":{"v":0.200000003,"u":"A","d":2},"YieldDay":{"v":1018,"u":"Wh","d":0},"YieldTotal":{"v":8.272000313,"u":"kWh","d":3},"Irradiation":{"v":1.793103456,"u":"%","d":3}},"1":{"name":{"u":""},"Power":{"v":7.900000095,"u":"W","d":1},"Voltage":{"v":38.40000153,"u":"V","d":1},"Current":{"v":0.200000003,"u":"A","d":2},"YieldDay":{"v":1036,"u":"Wh","d":0},"YieldTotal":{"v":8.734000206,"u":"kWh","d":3},"Irradiation":{"v":1.816092014,"u":"%","d":3}},"2":{"name":{"u":""},"Power":{"v":7.5,"u":"W","d":1},"Voltage":{"v":38.79999924,"u":"V","d":1},"Current":{"v":0.189999998,"u":"A","d":2},"YieldDay":{"v":1020,"u":"Wh","d":0},"YieldTotal":{"v":9.232000351,"u":"kWh","d":3},"Irradiation":{"v":1.724137902,"u":"%","d":3}},"3":{"name":{"u":""},"Power":{"v":7.599999905,"u":"W","d":1},"Voltage":{"v":38.70000076,"u":"V","d":1},"Current":{"v":0.189999998,"u":"A","d":2},"YieldDay":{"v":1034,"u":"Wh","d":0},"YieldTotal":{"v":9.862999916,"u":"kWh","d":3},"Irradiation":{"v":1.74712646,"u":"%","d":3}}},"INV":{"0":{"Temperature":{"v":21.20000076,"u":"°C","d":1}}},"events":1}],"total":{"Power":{"v":29.39999962,"u":"W","d":1},"YieldDay":{"v":4108,"u":"Wh","d":0},"YieldTotal":{"v":36.10100174,"u":"kWh","d":3}},"hints":{"time_sync":false,"radio_problem":false,"default_password":false}}

[Franco99]

Ich habe es hinbekommen, Dank deiner Unterstützung.

Vielen Dank dafür.
