Code: Alles auswählen
2021-11-21T10:34:00.366Z Installieren : node-red-dashboard 3.1.2
2021-11-21T10:34:00.494Z npm install --no-audit --no-update-notifier --no-fund --save --save-prefix=~ --production node-red-dashboard@3.1.2
2021-11-21T10:34:02.575Z [err] npm
2021-11-21T10:34:02.575Z [err]
2021-11-21T10:34:02.575Z [err] WARN npm npm does not support Node.js v10.24.0
2021-11-21T10:34:02.576Z [err] npm
2021-11-21T10:34:02.576Z [err] WARN
2021-11-21T10:34:02.576Z [err] npm You should probably upgrade to a newer version of node as we
2021-11-21T10:34:02.576Z [err] npm
2021-11-21T10:34:02.576Z [err] WARN npm
2021-11-21T10:34:02.577Z [err] can't make any promises that npm will work with this version.
2021-11-21T10:34:02.577Z [err] npm WARN
2021-11-21T10:34:02.577Z [err] npm
2021-11-21T10:34:02.577Z [err] Supported releases of Node.js are the latest release of 4, 6, 7, 8, 9.
2021-11-21T10:34:02.577Z [err] npm
2021-11-21T10:34:02.577Z [err] WARN npm You can find the latest version at https://nodejs.org/
2021-11-21T10:34:04.481Z [err] npm
2021-11-21T10:34:04.481Z [err] ERR! code Z_BUF_ERROR
2021-11-21T10:34:04.482Z [err] npm
2021-11-21T10:34:04.482Z [err] ERR! errno
2021-11-21T10:34:04.482Z [err] -5
2021-11-21T10:34:04.492Z [err] npm
2021-11-21T10:34:04.492Z [err] ERR! zlib: unexpected end of file
2021-11-21T10:34:04.520Z [err]
2021-11-21T10:34:04.520Z [err] npm ERR! A complete log of this run can be found in:
2021-11-21T10:34:04.521Z [err] npm ERR! /home/pi/.npm/_logs/2021-11-21T10_34_04_496Z-debug.log
2021-11-21T10:34:04.533Z rc=251

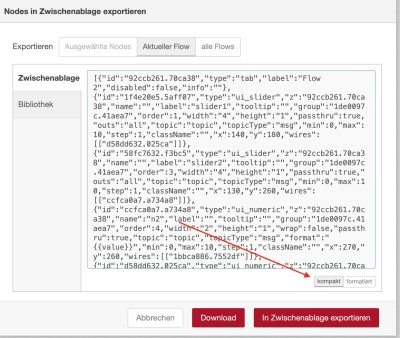

Code: Alles auswählen
[{"id":"92ccb261.70ca38","type":"tab","label":"Flow 2","disabled":false,"info":""},{"id":"1f4e20e5.5aff07","type":"ui_slider","z":"92ccb261.70ca38","name":"","label":"slider1","tooltip":"","group":"1de0097c.41aea7","order":1,"width":"4","height":"1","passthru":true,"outs":"all","topic":"topic","topicType":"msg","min":0,"max":10,"step":1,"className":"","x":110,"y":100,"wires":[["d58dd632.025ca"]]},{"id":"58fc7632.f3bc5","type":"ui_slider","z":"92ccb261.70ca38","name":"","label":"slider2","tooltip":"","group":"1de0097c.41aea7","order":3,"width":"4","height":"1","passthru":true,"outs":"all","topic":"topic","topicType":"msg","min":0,"max":10,"step":1,"className":"","x":110,"y":180,"wires":[["ccfca0a7.a734a8"]]},{"id":"ccfca0a7.a734a8","type":"ui_numeric","z":"92ccb261.70ca38","name":"n2","label":"","tooltip":"","group":"1de0097c.41aea7","order":4,"width":"2","height":"1","wrap":false,"passthru":true,"topic":"topic","topicType":"msg","format":"{{value}}","min":0,"max":10,"step":1,"className":"","x":250,"y":180,"wires":[["1bbca886.7552df","58fc7632.f3bc5"]]},{"id":"d58dd632.025ca","type":"ui_numeric","z":"92ccb261.70ca38","name":"n1","label":"","tooltip":"","group":"1de0097c.41aea7","order":2,"width":"2","height":"1","wrap":false,"passthru":true,"topic":"topic","topicType":"msg","format":"{{value}}","min":0,"max":10,"step":1,"className":"","x":250,"y":100,"wires":[["4d57d866.cb8268","1f4e20e5.5aff07"]]},{"id":"4d57d866.cb8268","type":"change","z":"92ccb261.70ca38","name":"","rules":[{"t":"set","p":"s1","pt":"flow","to":"payload","tot":"msg"}],"action":"","property":"","from":"","to":"","reg":false,"x":430,"y":100,"wires":[["e57b46bf.250cd"]]},{"id":"1bbca886.7552df","type":"change","z":"92ccb261.70ca38","name":"","rules":[{"t":"set","p":"s2","pt":"flow","to":"payload","tot":"msg"}],"action":"","property":"","from":"","to":"","reg":false,"x":430,"y":180,"wires":[["e57b46bf.250cd"]]},{"id":"e57b46bf.250cd","type":"function","z":"92ccb261.70ca38","name":"flow.s1 + flow.s2","func":"msg.payload = flow.get(\"s1\")+flow.get(\"s2\");\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","x":660,"y":140,"wires":[["9930485d.b1aca"]]},{"id":"9930485d.b1aca","type":"ui_gauge","z":"92ccb261.70ca38","name":"","group":"1de0097c.41aea7","order":4,"width":0,"height":0,"gtype":"gage","title":"total","label":"units","format":"{{value}}","min":0,"max":"20","colors":["#00b500","#e6e600","#ca3838"],"seg1":"","seg2":"","className":"","x":850,"y":140,"wires":[]},{"id":"1de0097c.41aea7","type":"ui_group","name":"Simulation","tab":"744b5117.d18b28","order":1,"disp":true,"width":"6","collapse":false,"className":""},{"id":"744b5117.d18b28","type":"ui_tab","name":"Haussimulation","icon":"dashboard","disabled":false,"hidden":false}]So, willkommen in der Pakethölle mit seinen Abhängigkeiten. Ich hab' mit mal ein neues Image gezogen und von Hand erst node.js installiert und dann darauf node-red:
Code: Alles auswählen
[{"id":"9c914c19df595675","type":"tab","label":"Gero","disabled":false,"info":"","env":[]},{"id":"97ce6c56cb2baf03","type":"ui_slider","z":"9c914c19df595675","name":"","label":"HV1","tooltip":"","group":"0268d1212c203718","order":1,"width":"4","height":"1","passthru":true,"outs":"all","topic":"topic","topicType":"msg","min":0,"max":"20","step":1,"className":"","x":110,"y":100,"wires":[["f975d815e97a181b"]]},{"id":"1024d77b919acba0","type":"ui_slider","z":"9c914c19df595675","name":"","label":"HV2","tooltip":"","group":"0268d1212c203718","order":3,"width":"4","height":"1","passthru":true,"outs":"all","topic":"topic","topicType":"msg","min":0,"max":"20","step":1,"className":"","x":110,"y":180,"wires":[["9bd96c0b53581396"]]},{"id":"9bd96c0b53581396","type":"ui_numeric","z":"9c914c19df595675","name":"n2","label":"","tooltip":"","group":"0268d1212c203718","order":4,"width":"2","height":"1","wrap":false,"passthru":true,"topic":"topic","topicType":"msg","format":"{{value}}","min":0,"max":"20","step":1,"className":"","x":250,"y":180,"wires":[["9b8b60bb10225244"]]},{"id":"f975d815e97a181b","type":"ui_numeric","z":"9c914c19df595675","name":"n1","label":"","tooltip":"","group":"0268d1212c203718","order":2,"width":"2","height":"1","wrap":false,"passthru":true,"topic":"topic","topicType":"msg","format":"{{value}}","min":0,"max":"20","step":1,"className":"","x":250,"y":100,"wires":[["f76fd4277af673dc"]]},{"id":"f76fd4277af673dc","type":"change","z":"9c914c19df595675","name":"","rules":[{"t":"set","p":"s1","pt":"flow","to":"payload","tot":"msg"}],"action":"","property":"","from":"","to":"","reg":false,"x":450,"y":100,"wires":[["a410097e0fee0c91"]]},{"id":"9b8b60bb10225244","type":"change","z":"9c914c19df595675","name":"","rules":[{"t":"set","p":"s2","pt":"flow","to":"payload","tot":"msg"}],"action":"","property":"","from":"","to":"","reg":false,"x":450,"y":180,"wires":[["a410097e0fee0c91"]]},{"id":"a410097e0fee0c91","type":"function","z":"9c914c19df595675","name":"Summe in Watt","func":"msg.payload = flow.get(\"s1\")+flow.get(\"s2\")+flow.get(\"s3\");\nmsg.payload = 230*msg.payload;\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":660,"y":180,"wires":[["366353fbdc4e66b1"]]},{"id":"366353fbdc4e66b1","type":"ui_gauge","z":"9c914c19df595675","name":"","group":"0268d1212c203718","order":7,"width":0,"height":0,"gtype":"gage","title":"total","label":"Watt","format":"{{value}}","min":0,"max":"13800","colors":["#00b500","#e6e600","#ca3838"],"seg1":"","seg2":"","className":"","x":870,"y":180,"wires":[]},{"id":"37302d1de942153d","type":"mqtt in","z":"9c914c19df595675","name":"Hausverbrauch","topic":"openWB/global/WHouseConsumption","qos":"2","datatype":"auto","broker":"c4cb83c8.1bd0c","nl":false,"rap":true,"rh":0,"inputs":0,"x":140,"y":380,"wires":[[]]},{"id":"f60e38b81463bb64","type":"ui_slider","z":"9c914c19df595675","name":"","label":"HV3","tooltip":"","group":"0268d1212c203718","order":5,"width":"4","height":"1","passthru":true,"outs":"all","topic":"topic","topicType":"msg","min":0,"max":"20","step":1,"className":"","x":110,"y":260,"wires":[["77a398ae8b4481ab"]]},{"id":"77a398ae8b4481ab","type":"ui_numeric","z":"9c914c19df595675","name":"n3","label":"","tooltip":"","group":"0268d1212c203718","order":6,"width":"2","height":"1","wrap":false,"passthru":true,"topic":"topic","topicType":"msg","format":"{{value}}","min":0,"max":"20","step":1,"className":"","x":250,"y":260,"wires":[["4778cf914b1668f2"]]},{"id":"4778cf914b1668f2","type":"change","z":"9c914c19df595675","name":"","rules":[{"t":"set","p":"s3","pt":"flow","to":"payload","tot":"msg"}],"action":"","property":"","from":"","to":"","reg":false,"x":450,"y":260,"wires":[["a410097e0fee0c91"]]},{"id":"0268d1212c203718","type":"ui_group","name":"Sim Hausverbrauch","tab":"744b5117.d18b28","order":1,"disp":true,"width":"6","collapse":false,"className":""},{"id":"c4cb83c8.1bd0c","type":"mqtt-broker","name":"OpenWB","broker":"192.168.8.11","port":"1883","clientid":"","usetls":false,"compatmode":false,"keepalive":"30","cleansession":true,"birthTopic":"","birthQos":"0","birthRetain":"false","birthPayload":"","closeTopic":"","closeQos":"0","closeRetain":"false","closePayload":"","willTopic":"","willQos":"0","willRetain":"false","willPayload":""},{"id":"744b5117.d18b28","type":"ui_tab","name":"Sim Hausverbrauch / PV-Erzeug.","icon":"dashboard","disabled":false,"hidden":false}]Code: Alles auswählen
[{"id":"cf354afd.9bc818","type":"tab","label":"Gero","disabled":false,"info":""},{"id":"5719608c.cb6d5","type":"ui_slider","z":"cf354afd.9bc818","name":"","label":"HV1","tooltip":"","group":"e4b1e54c.678138","order":1,"width":"4","height":"1","passthru":true,"outs":"all","topic":"topic","topicType":"msg","min":0,"max":"20","step":1,"className":"","x":270,"y":100,"wires":[["bbecace6.cf6118"]]},{"id":"4c4decd7.181c64","type":"ui_slider","z":"cf354afd.9bc818","name":"","label":"HV2","tooltip":"","group":"e4b1e54c.678138","order":3,"width":"4","height":"1","passthru":true,"outs":"all","topic":"topic","topicType":"msg","min":0,"max":"20","step":1,"className":"","x":270,"y":180,"wires":[["73c7b491.eca484"]]},{"id":"73c7b491.eca484","type":"ui_numeric","z":"cf354afd.9bc818","name":"n2","label":"","tooltip":"","group":"e4b1e54c.678138","order":4,"width":"2","height":"1","wrap":false,"passthru":true,"topic":"topic","topicType":"msg","format":"{{value}}","min":0,"max":"20","step":1,"className":"","x":410,"y":180,"wires":[["90ab8442.f81ce","4c4decd7.181c64"]]},{"id":"bbecace6.cf6118","type":"ui_numeric","z":"cf354afd.9bc818","name":"n1","label":"","tooltip":"","group":"e4b1e54c.678138","order":2,"width":"2","height":"1","wrap":false,"passthru":true,"topic":"topic","topicType":"msg","format":"{{value}}","min":0,"max":"20","step":1,"className":"","x":410,"y":100,"wires":[["c0e5a2f6.6011a8","5719608c.cb6d5"]]},{"id":"c0e5a2f6.6011a8","type":"change","z":"cf354afd.9bc818","name":"","rules":[{"t":"set","p":"s1","pt":"flow","to":"payload","tot":"msg"}],"action":"","property":"","from":"","to":"","reg":false,"x":610,"y":100,"wires":[["532109e9.94e058"]]},{"id":"90ab8442.f81ce","type":"change","z":"cf354afd.9bc818","name":"","rules":[{"t":"set","p":"s2","pt":"flow","to":"payload","tot":"msg"}],"action":"","property":"","from":"","to":"","reg":false,"x":610,"y":180,"wires":[["532109e9.94e058"]]},{"id":"532109e9.94e058","type":"function","z":"cf354afd.9bc818","name":"Summe in Watt","func":"msg.payload = flow.get(\"s1\")+flow.get(\"s2\")+flow.get(\"s3\");\nmsg.payload = 230*msg.payload;\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","x":820,"y":180,"wires":[["73d4ae7a.9e5378","9e6ce960.f2e4a8"]]},{"id":"73d4ae7a.9e5378","type":"ui_gauge","z":"cf354afd.9bc818","name":"","group":"e4b1e54c.678138","order":7,"width":0,"height":0,"gtype":"gage","title":"total","label":"Watt","format":"{{value}}","min":0,"max":"13800","colors":["#00b500","#e6e600","#ca3838"],"seg1":"","seg2":"","className":"","x":1030,"y":180,"wires":[]},{"id":"9f19e960.3fd5e8","type":"mqtt in","z":"cf354afd.9bc818","name":"Hausverbrauch","topic":"openWB/global/WHouseConsumption","qos":"2","datatype":"auto","broker":"978968c8.7b5238","x":300,"y":380,"wires":[[]]},{"id":"33e16f4f.c097e8","type":"ui_slider","z":"cf354afd.9bc818","name":"","label":"HV3","tooltip":"","group":"e4b1e54c.678138","order":5,"width":"4","height":"1","passthru":true,"outs":"all","topic":"topic","topicType":"msg","min":0,"max":"20","step":1,"className":"","x":270,"y":260,"wires":[["c46e3ffe.11dc18"]]},{"id":"c46e3ffe.11dc18","type":"ui_numeric","z":"cf354afd.9bc818","name":"n3","label":"","tooltip":"","group":"e4b1e54c.678138","order":6,"width":"2","height":"1","wrap":false,"passthru":true,"topic":"topic","topicType":"msg","format":"{{value}}","min":0,"max":"20","step":1,"className":"","x":410,"y":260,"wires":[["db7c49ee.fd03e8","33e16f4f.c097e8"]]},{"id":"db7c49ee.fd03e8","type":"change","z":"cf354afd.9bc818","name":"","rules":[{"t":"set","p":"s3","pt":"flow","to":"payload","tot":"msg"}],"action":"","property":"","from":"","to":"","reg":false,"x":610,"y":260,"wires":[["532109e9.94e058"]]},{"id":"9e6ce960.f2e4a8","type":"debug","z":"cf354afd.9bc818","name":"","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":1020,"y":260,"wires":[]},{"id":"3b68517d.870aae","type":"inject","z":"cf354afd.9bc818","name":"","props":[{"p":"payload"}],"repeat":"","crontab":"","once":true,"onceDelay":0.1,"topic":"","payload":"0","payloadType":"num","x":70,"y":180,"wires":[["5719608c.cb6d5","4c4decd7.181c64","33e16f4f.c097e8"]]},{"id":"e4b1e54c.678138","type":"ui_group","name":"Sim Hausverbrauch","tab":"744b5117.d18b28","order":1,"disp":true,"width":"6","collapse":false,"className":""},{"id":"978968c8.7b5238","type":"mqtt-broker","name":"OpenWB","broker":"192.168.8.11","port":"1883","clientid":"","usetls":false,"compatmode":false,"keepalive":"30","cleansession":true,"birthTopic":"","birthQos":"0","birthRetain":"false","birthPayload":"","closeTopic":"","closeQos":"0","closeRetain":"false","closePayload":"","willTopic":"","willQos":"0","willRetain":"false","willPayload":""},{"id":"744b5117.d18b28","type":"ui_tab","name":"Haussimulation","icon":"dashboard","disabled":false,"hidden":false}]...in Node-Red ist eigentlich das Konzept, dass es sich bei den Messages in erster Linie *nicht* um Daten handelt, sondern um Events.aiole hat geschrieben: ↑Sa Nov 20, 2021 9:07 pm Hallo Kollegen,
so - Node-Red samt Dashboard laufen auf dem RPi. Danke schon mal für den Support bis hierher.
Den Statistic-Node gab's nicht mehr, aber mit dem f-Zeichen scheint das zum function-node mutiert zu sein (ach nee - dort kann ich mit js manuell proggen). Ich habe schon etwas gesucht, aber es gestaltet sich anfangs immer schwierig.

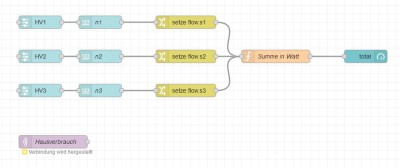

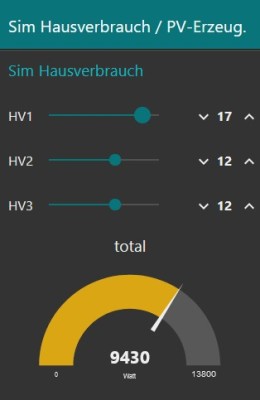

Ich will dort die 3 Werte addieren und x 230V rechen, um den Hausverbrauch in Watt auszugeben (und auf den Gauge-node zu senden).
Kann mir hier jemand mit einem kleinen js-Bsp. im function-code behilflich sein.
Damit wäre HV fertig und ich müsste dasselbe nochmal mit PV-Erzeugung erstellen. Dort alles mit negativem Vorzeichen (Einspeisung).
Zum Schluss muss ich noch die einzelen Phasenströme addieren (vorzeichenbehaftet), die Volt-Variablen auf 230V und f auf 50 Hz setzen.
Die Wh lasse ich für die Sim, die nur die Regelkünste der oWB zeigen soll, erstmal weg.
Ich simuliere also nur HV und PV (phasenweise) und Node-red klöppelt mir alle für oWB nötigen Werte zusammen.
