PV-Laden unterbricht und startet immer wieder neu
Re: PV-Laden unterbricht und startet immer wieder neu
Nun ist die Box wie vor einigen Wochen schon mal plötzlich ganz aus.
Daher muss ich erst mal hier weiter machen
https://forum.openwb.de/viewtopic.php?p=118802#p118802
Daher muss ich erst mal hier weiter machen
https://forum.openwb.de/viewtopic.php?p=118802#p118802
openWB series2 standard+, PV ohne Speicher
Re: PV-Laden unterbricht und startet immer wieder neu

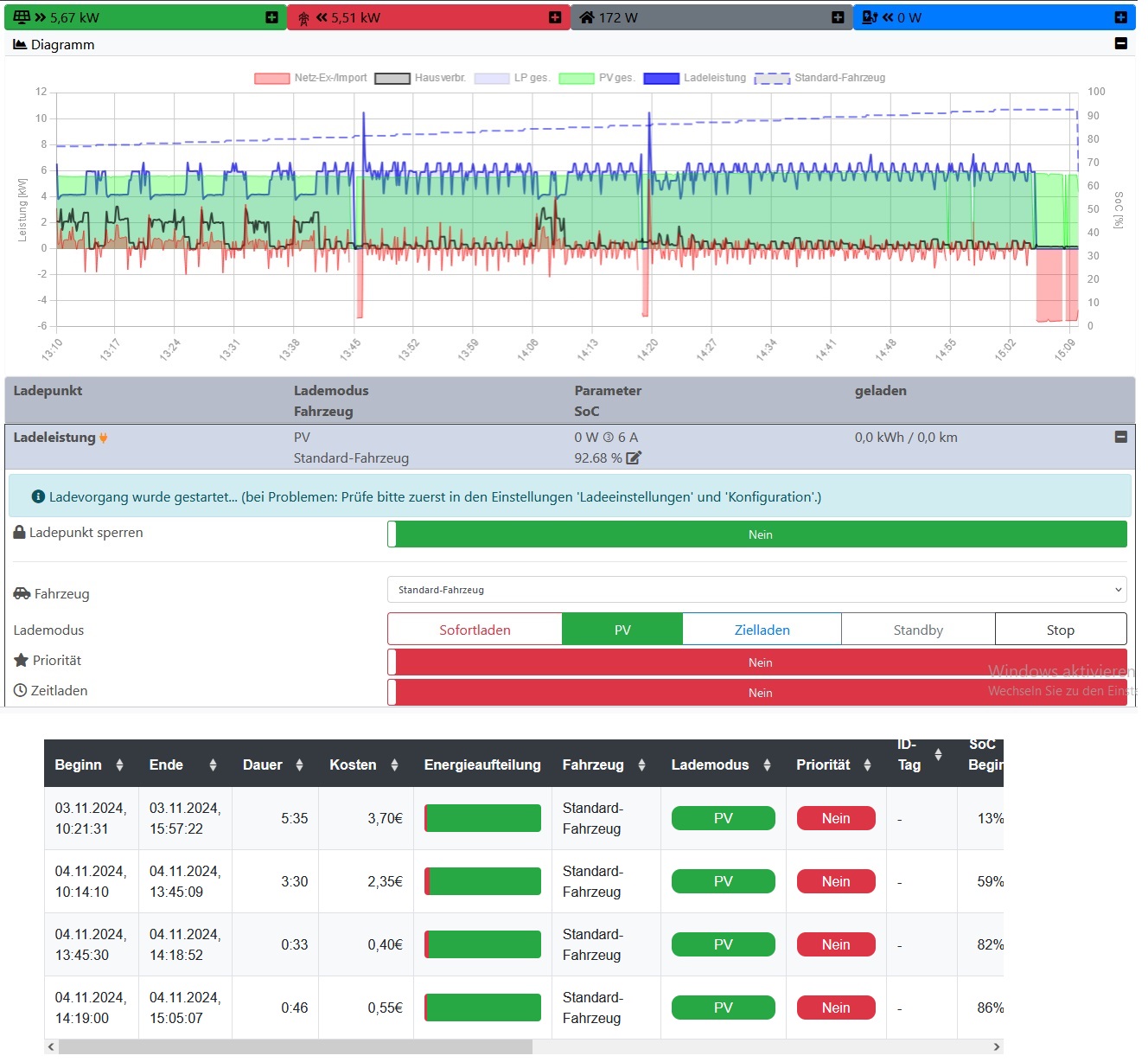

Da ich jetzt nun doch mal wieder laden muss, habe ich währenddessen einen Logauszug kopiert.
Hier ist zwar noch keine komplette Ladeunterbrechung dabei, aber die Ausschläge der Ladeleistung sind einiges größer als der Hausverbrauch schwankt.
Vielleicht ist da ja noch normal oder aber auch schon was zu erkennen.
(Auf einen Moment, wo das PV-Laden ganz unterbricht, um dann ein Log zu machen, warte ich noch.)
openWB series2 standard+
Fronius Symo, kein PV-Speicher
Hausverbrauch von openWB berechnen
Fronius S0 Zähler
Lade-Modul intern
Standard-Fahrzeug- und Lade-Profil
MG MG4
Hier ist zwar noch keine komplette Ladeunterbrechung dabei, aber die Ausschläge der Ladeleistung sind einiges größer als der Hausverbrauch schwankt.
Vielleicht ist da ja noch normal oder aber auch schon was zu erkennen.
(Auf einen Moment, wo das PV-Laden ganz unterbricht, um dann ein Log zu machen, warte ich noch.)
openWB series2 standard+
Fronius Symo, kein PV-Speicher
Hausverbrauch von openWB berechnen
Fronius S0 Zähler
Lade-Modul intern
Standard-Fahrzeug- und Lade-Profil
MG MG4
Code: Alles auswählen
2024-11-03 11:01:40,636 - {root:75} - {INFO:MainThread} - # ***Start***
2024-11-03 11:01:40,674 - {modules.common.component_context:54} - {DEBUG:device0} - Update Komponenten ['Fronius Wechselrichter']
2024-11-03 11:01:40,683 - {urllib3.connectionpool:227} - {DEBUG:device0} - Starting new HTTP connection (1): 192.168.168.48:80
2024-11-03 11:01:40,686 - {modules.common.component_context:54} - {DEBUG:device1} - Update Komponenten ['Netz-Ex-/Import']
2024-11-03 11:01:40,693 - {urllib3.connectionpool:227} - {DEBUG:device1} - Starting new HTTP connection (1): 192.168.168.48:80
2024-11-03 11:01:40,695 - {modules.common.component_context:25} - {DEBUG:set values cp2} - Update Komponente ['Ladepunkt']
2024-11-03 11:01:40,784 - {urllib3.connectionpool:452} - {DEBUG:device0} - http://192.168.168.48:80 "GET /solar_api/v1/GetPowerFlowRealtimeData.fcgi?Scope=System HTTP/1.1" 200 1133
2024-11-03 11:01:40,786 - {modules.common.req:32} - {DEBUG:device0} - Get-Response: {
"Body" : {
"Data" : {
"Inverters" : {
"1" : {
"DT" : 105,
"E_Day" : 3401,
"E_Total" : 67781800,
"E_Year" : 6793890.5,
"P" : 2752
},
"2" : {
"DT" : 115,
"E_Day" : 4518,
"E_Total" : 54317900,
"E_Year" : 11628829,
"P" : 2813
}
},
"Site" : {
"E_Day" : 7919,
"E_Total" : 122099700,
"E_Year" : 18422719.5,
"Meter_Location" : "load",
"Mode" : "vague-meter",
"P_Akku" : null,
"P_Grid" : -1743.3439558153682,
"P_Load" : -3821.6560441846318,
"P_PV" : 5565,
"rel_Autonomy" : 100,
"rel_SelfConsumption" : 68.673064585527982
},
"Version" : "12"
}
},
"Head" : {
"RequestArguments" : {},
"Status" : {
"Code" : 0,
"Reason" : "",
"UserMessage" : ""
},
"Timestamp" : "2024-11-03T11:01:40+01:00"
}
}
2024-11-03 11:01:40,788 - {modules.common.simcount._simcount:42} - {DEBUG:device0} - Previous state: SimCounterState(timestamp=1730628090.672054, power=-5566.0, imported=0.0, exported=3768857.0002656765)
2024-11-03 11:01:40,789 - {modules.common.simcount._calculate:11} - {DEBUG:device0} - time passed: 0.00281021, power1: -5566, power2: -5565
2024-11-03 11:01:40,789 - {modules.common.simcount._calculate:27} - {DEBUG:device0} - power did not change sign. Total energy: -15.6403
2024-11-03 11:01:40,790 - {modules.common.simcount._simcount:65} - {DEBUG:device0} - imported: 0 Wh, exported: 15.6403 Wh, new state: SimCounterState(timestamp=1730628100.7888274, power=-5565.0, imported=0.0, exported=3768872.64051628)
2024-11-03 11:01:40,791 - {modules.common.store._api:26} - {DEBUG:device0} - Raw data InverterState(currents=[0.0, 0.0, 0.0], power=-5565.0, exported=3768872.64051628, dc_power=None)
2024-11-03 11:01:40,802 - {urllib3.connectionpool:452} - {DEBUG:device1} - http://192.168.168.48:80 "GET /solar_api/v1/GetPowerFlowRealtimeData.fcgi HTTP/1.1" 200 1133
2024-11-03 11:01:40,805 - {modules.common.req:32} - {DEBUG:device1} - Get-Response: {
"Body" : {
"Data" : {
"Inverters" : {
"1" : {
"DT" : 105,
"E_Day" : 3401,
"E_Total" : 67781800,
"E_Year" : 6793890.5,
"P" : 2752
},
"2" : {
"DT" : 115,
"E_Day" : 4518,
"E_Total" : 54317900,
"E_Year" : 11628829,
"P" : 2813
}
},
"Site" : {
"E_Day" : 7919,
"E_Total" : 122099700,
"E_Year" : 18422719.5,
"Meter_Location" : "load",
"Mode" : "vague-meter",
"P_Akku" : null,
"P_Grid" : -1743.3439558153682,
"P_Load" : -3821.6560441846318,
"P_PV" : 5565,
"rel_Autonomy" : 100,
"rel_SelfConsumption" : 68.673064585527982
},
"Version" : "12"
}
},
"Head" : {
"RequestArguments" : {},
"Status" : {
"Code" : 0,
"Reason" : "",
"UserMessage" : ""
},
"Timestamp" : "2024-11-03T11:01:40+01:00"
}
}
2024-11-03 11:01:40,808 - {modules.common.simcount._simcount:42} - {DEBUG:device1} - Previous state: SimCounterState(timestamp=1730628090.744448, power=-356.15908857919203, imported=346091.01700075617, exported=3206702.792400387)
2024-11-03 11:01:40,809 - {modules.common.simcount._calculate:11} - {DEBUG:device1} - time passed: 0.00279547, power1: -356.159, power2: -1743.34
2024-11-03 11:01:40,809 - {modules.common.simcount._calculate:27} - {DEBUG:device1} - power did not change sign. Total energy: -2.93455
2024-11-03 11:01:40,810 - {modules.common.simcount._simcount:65} - {DEBUG:device1} - imported: 0 Wh, exported: 2.93455 Wh, new state: SimCounterState(timestamp=1730628100.8081284, power=-1743.3439558153682, imported=346091.01700075617, exported=3206705.7269458952)
2024-11-03 11:01:40,814 - {modules.common.store._api:26} - {DEBUG:device1} - Raw data CounterState(currents=[0.0, 0.0, 0.0], powers=[0.0, 0.0, 0.0], voltages=[230.0, 230.0, 230.0], power_factors=[0.0, 0.0, 0.0], imported=346091.01700075617, exported=3206705.7269458952, power=-1743.3439558153682, frequency=50)
2024-11-03 11:01:40,835 - {modules.common.component_context:25} - {DEBUG:component1} - Update Komponente ['Fronius Wechselrichter']
2024-11-03 11:01:40,840 - {modules.common.store._api:26} - {DEBUG:component1} - Raw data InverterState(currents=[0.0, 0.0, 0.0], power=-5565.0, exported=3768872.64051628, dc_power=None)
2024-11-03 11:01:40,839 - {modules.common.component_context:25} - {DEBUG:update values cp2} - Update Komponente ['Ladepunkt']
2024-11-03 11:01:40,841 - {modules.common.store._api:31} - {INFO:component1} - Saving InverterState(currents=[0.0, 0.0, 0.0], power=-5565.0, exported=3768872.64051628, dc_power=None)
2024-11-03 11:01:40,877 - {modules.common.component_context:25} - {DEBUG:component0} - Update Komponente ['Netz-Ex-/Import']
2024-11-03 11:01:40,878 - {modules.common.store._api:31} - {INFO:component0} - Saving CounterState(currents=[0.0, 0.0, 0.0], powers=[0.0, 0.0, 0.0], voltages=[230.0, 230.0, 230.0], power_factors=[0.0, 0.0, 0.0], imported=346091.01700075617, exported=3206705.7269458952, power=-1743.3439558153682, frequency=50)
2024-11-03 11:01:40,957 - {modules.common.component_context:25} - {DEBUG:get ripple control receiver} - Update Komponente ['GPIOs auf der AddOn-Platine']
2024-11-03 11:01:40,958 - {modules.ripple_control_receivers.gpio.ripple_control_receiver:35} - {DEBUG:get ripple control receiver} - RSE-Kontakt 1: False, RSE-Kontakt 2: False
2024-11-03 11:01:40,959 - {modules.common.store._api:26} - {DEBUG:get ripple control receiver} - Raw data RcrState(override_value=100)
2024-11-03 11:01:40,962 - {modules.common.component_context:25} - {DEBUG:set ripple control receiver} - Update Komponente ['GPIOs auf der AddOn-Platine']
2024-11-03 11:01:40,963 - {modules.common.store._api:31} - {INFO:set ripple control receiver} - Saving RcrState(override_value=100)
2024-11-03 11:01:41,051 - {control.counter:148} - {INFO:MainThread} - Verbleibende Ströme an Zähler 0: [41.31, 41.35, 41.33]A
2024-11-03 11:01:41,053 - {control.counter:171} - {INFO:MainThread} - Verbleibende Leistung an Zähler 0: 30218.723955815367W
2024-11-03 11:01:41,055 - {control.chargepoint.chargepoint:557} - {DEBUG:MainThread} - EV-Phasenzahl beschränkt die nutzbaren Phasen auf 3
2024-11-03 11:01:41,058 - {control.chargepoint.chargepoint:682} - {INFO:MainThread} - LP 2, EV: Standard-Fahrzeug (EV-Nr.0): Theoretisch benötigter Strom 6A, Lademodus pv_charging, Submodus: Chargemode.INSTANT_CHARGING, Phasen: 3, Priorität: False, max. Ist-Strom: 6.35
2024-11-03 11:01:41,059 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -653.7239558153683W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:01:41,066 - {control.data:236} - {INFO:MainThread} - bat_all_data
BatAllData(config=Config(configured=False), get=Get(soc=0, daily_exported=0.0, daily_imported=0.0, fault_str='Kein Fehler.', fault_state=0, imported=0, exported=0, power=0), set=Set(charging_power_left=0, regulate_up=False))
2024-11-03 11:01:41,069 - {control.data:237} - {INFO:MainThread} - cp_all_data
AllChargepointData(get=AllGet(daily_imported=3486.0, daily_exported=0.0, power=4475.38, imported=5916589.84, exported=0))
2024-11-03 11:01:41,082 - {control.data:266} - {INFO:MainThread} - cp2
ChargepointData(control_parameter=ControlParameter(chargemode=<Chargemode.PV_CHARGING: 'pv_charging'>, current_plan=None, failed_phase_switches=0, imported_at_plan_start=None, imported_instant_charging=None, limit=', da die maximale Leistung an Zähler {} erreicht ist.', phases=3, prio=False, required_current=6, required_currents=[6, 6, 6], state=4, submode=<Chargemode.INSTANT_CHARGING: 'instant_charging'>, timestamp_auto_phase_switch=None, timestamp_perform_phase_switch=None, timestamp_switch_on_off=None), get=Get(charge_state=True, connected_vehicle=ConnectedVehicle(config=ConnectedConfig(average_consumption=17, charge_template=0, chargemode='stop', current_plan=0, ev_template=0, priority=False, time_charging_in_use=False), info=ConnectedInfo(id=0, name='Ladepunkt'), soc=17.98), currents=[6.31, 6.35, 6.33], daily_imported=3486.0, daily_exported=0.0, evse_current=7, exported=0, fault_str='Kein Fehler.', fault_state=0, imported=5916589.84, phases_in_use=3, plug_state=True, power=4475.38, rfid_timestamp=None, rfid=None, serial_number='20202752', soc=None, soc_timestamp=None, state_str=None, vehicle_id=None, voltages=[236.94, 238.58, 235.84]), set=Set(charging_ev=0, charging_ev_prev=0, current=7.85, energy_to_charge=0, loadmanagement_available=True, log=Log(chargemode_log_entry='pv_charging', costs=0.4316, imported_at_mode_switch=5912943.85, imported_at_plugtime=5912943.85, imported_since_mode_switch=3632.8100000005215, imported_since_plugged=3632.8100000005215, range_charged=21.36947058823836, time_charged='0:40', timestamp_start_charging=1730625691.053918, ev=0, prio=False, rfid=None, serial_number=None, soc_at_start=13, soc_at_end=None, range_at_start=None, range_at_end=None), manual_lock=False, phases_to_use=3, plug_state_prev=True, plug_time=1730625680.341206, required_power=4140, rfid=None, target_current=0, charging_ev_data=<control.ev.Ev object at 0x75819d90>), config=Config(configuration={'mode': 'series', 'ip_address': 'localhost', 'duo_num': 0}, ev=0, name='Ladeleistung', type='internal_openwb', template=0, connected_phases=3, phase_1=1, auto_phase_switch_hw=True, control_pilot_interruption_hw=False, id=2))
2024-11-03 11:01:41,084 - {control.data:266} - {INFO:MainThread} - cpt0
CpTemplateData(autolock=Autolock(active=False, plans={}, wait_for_charging_end=False), id=0, max_current_multi_phases=32, max_current_single_phase=32, name='Standard Ladepunkt-Profil', disable_after_unplug=False, valid_tags=[])
2024-11-03 11:01:41,086 - {control.data:266} - {INFO:MainThread} - counter0
CounterData(config=Config(max_currents=[35, 35, 35], max_total_power=24000), get=Get(powers=[0.0, 0.0, 0.0], currents=[0.0, 0.0, 0.0], voltages=[230.0, 230.0, 230.0], power_factors=[0.0, 0.0, 0.0], frequency=50, daily_exported=3069.0, daily_imported=2810.0, imported=346091.01700075617, exported=3206705.7269458952, fault_state=1, fault_str='Hinweis: Es gibt mehr Stromerzeuger im Haus als in der openWB eingetragen sind. Der Hausverbrauch kann nicht korrekt berechnet werden. Dies hat auf die PV-Überschussladung keine negativen Auswirkungen.', power=-1743.3439558153682), set=Set(error_counter=0, reserved_surplus=0, released_surplus=0, raw_power_left=30218.723955815367, raw_currents_left=[41.31, 41.35, 41.33], surplus_power_left=0))
2024-11-03 11:01:41,088 - {control.data:241} - {INFO:MainThread} - counter_all_data
CounterAllData(config=Config(home_consumption_source_id=None, reserve_for_not_charging=False), get=Get(hierarchy=[{'id': 0, 'type': 'counter', 'children': [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]}]), set=Set(loadmanagement_active=False, home_consumption=706.840911420808, smarthome_power_excluded_from_home_consumption=0, invalid_home_consumption=1, daily_yield_home_consumption=4077.0, imported_home_consumption=657707.1189021071, disengageable_smarthome_power=0))
2024-11-03 11:01:41,089 - {control.data:266} - {INFO:MainThread} - ct0
ChargeTemplateData(name='Standard-Lade-Profil', prio=False, load_default=False, et=Et(active=False, max_price=0.0002), time_charging=TimeCharging(active=False, plans={}), chargemode=Chargemode(selected='pv_charging', pv_charging=PvCharging(min_soc_current=10, min_current=6, feed_in_limit=False, min_soc=0, max_soc=100), scheduled_charging=ScheduledCharging(plans={}), instant_charging=InstantCharging(current=16, limit=Limit(selected='none', amount=1000, soc=50))))
2024-11-03 11:01:41,092 - {control.data:266} - {INFO:MainThread} - ev0
EvData(set=Set(soc_error_counter=0), charge_template=0, ev_template=0, name='Standard-Fahrzeug', tag_id=[], get=Get(soc=18.69, soc_timestamp=1730628094.447061, force_soc_update=False, range=None, fault_state=0, fault_str='Kein Fehler.'))
2024-11-03 11:01:41,093 - {control.data:266} - {INFO:MainThread} - et0
EvTemplateData(name='Standard-Fahrzeug-Profil', max_current_multi_phases=16, max_phases=3, phase_switch_pause=2, prevent_phase_switch=False, prevent_charge_stop=False, control_pilot_interruption=False, control_pilot_interruption_duration=4, average_consump=17000, min_current=6, max_current_single_phase=32, battery_capacity=62000, efficiency=97, nominal_difference=1, keep_charge_active_duration=40)
2024-11-03 11:01:41,111 - {control.data:245} - {INFO:MainThread} - general_data
GeneralData(chargemode_config=ChargemodeConfig(instant_charging=InstantCharging(phases_to_use=3), phase_switch_delay=7, pv_charging=PvCharging(bat_power_reserve=200, bat_power_reserve_active=True, control_range=[0, 230], feed_in_yield=0, phase_switch_delay=7, phases_to_use=3, bat_power_discharge=1000, bat_power_discharge_active=True, min_bat_soc=50, bat_mode='min_soc_bat_mode', switch_off_delay=60, switch_off_threshold=50, switch_on_delay=30, switch_on_threshold=1500), retry_failed_phase_switches=False, scheduled_charging=ScheduledCharging(phases_to_use=0, phases_to_use_pv=0), time_charging=TimeCharging(phases_to_use=3), unbalanced_load_limit=18, unbalanced_load=False), control_interval=10, extern_display_mode='primary', extern=False, external_buttons_hw=False, grid_protection_active=False, grid_protection_configured=True, grid_protection_random_stop=0, grid_protection_timestamp=None, http_api=False, mqtt_bridge=False, prices=Prices(bat=0.0002, cp=0, grid=0.0003, pv=0.00012), range_unit='km', ripple_control_receiver=RippleControlReceiver(get=RippleControlReceiverGet(fault_state=0, fault_str='Kein Fehler.', override_value=100), module={'name': 'GPIOs auf der AddOn-Platine', 'type': 'gpio', 'configuration': {}}, override_reference=<OverrideReference.CHARGEPOINT: 'chargepoint'>))
2024-11-03 11:01:41,112 - {control.data:246} - {INFO:MainThread} - general_data-display
primary
2024-11-03 11:01:41,113 - {control.data:247} - {INFO:MainThread} - graph_data
GraphData(config=Config(duration=120))
2024-11-03 11:01:41,114 - {control.data:248} - {INFO:MainThread} - optional_data
OptionalData(et=Et(get=EtGet(fault_state=0, fault_str='Kein Fehler.', prices={})), int_display=InternalDisplay(active=True, on_if_plugged_in=True, pin_active=False, pin_code='0000', standby=60, theme=<modules.display_themes.cards.config.CardsDisplayTheme object at 0x758187f0>), led=Led(active=False), rfid=Rfid(active=False))
2024-11-03 11:01:41,128 - {control.data:266} - {INFO:MainThread} - pv1
PvData(config=Config(max_ac_out=0), get=Get(currents=[0.0, 0.0, 0.0], daily_exported=7739.0, monthly_exported=27963.77199999988, yearly_exported=0, exported=3768872.641, fault_state=0, fault_str='Kein Fehler.', power=-5565.0))
2024-11-03 11:01:41,130 - {control.data:250} - {INFO:MainThread} - pv_all_data
PvAllData(config=Config(configured=True), get=Get(daily_exported=7739.0, fault_str='Kein Fehler.', fault_state=0, monthly_exported=27963.77199999988, yearly_exported=0, exported=3768872.641, power=-5565.0))
2024-11-03 11:01:41,132 - {control.data:266} - {INFO:MainThread} - system
{'update_in_progress': False, 'perform_update': False, 'backup_cloud': {'backup_before_update': True}, 'ip_address': '192.168.168.30', 'current_commit': '2024-09-17 11:33:20 +0200 [141a182ad]', 'current_branch': 'Release', 'current_branch_commit': '2024-09-17 11:33:20 +0200 [141a182ad]', 'current_missing_commits': [], 'dataprotection_acknowledged': True, 'datastore_version': 55, 'usage_terms_acknowledged': True, 'debug_level': 10, 'release_train': 'master', 'version': '2.1.5-Patch.2', 'boot_done': True, 'installAssistantDone': True, 'lastlivevaluesJson': {'timestamp': 1730628091, 'time': '11:01:31', 'grid': -0.356, 'house-power': 0.707, 'charging-all': 4.503, 'pv-all': 5.566, 'cp2-power': 4.503, 'ev0-soc': 17.98}, 'module_update_completed': True}
2024-11-03 11:01:41,135 - {control.data:279} - {INFO:MainThread} - device0
{'name': 'Fronius', 'type': 'fronius', 'id': 0, 'configuration': {'ip_address': '192.168.168.48'}}
2024-11-03 11:01:41,137 - {control.data:281} - {INFO:MainThread} - component1
{'name': 'Fronius Wechselrichter', 'type': 'inverter', 'id': 1, 'configuration': {}}
2024-11-03 11:01:41,139 - {control.data:279} - {INFO:MainThread} - device1
{'name': 'Fronius', 'type': 'fronius', 'id': 1, 'configuration': {'ip_address': '192.168.168.48'}}
2024-11-03 11:01:41,141 - {control.data:281} - {INFO:MainThread} - component0
{'name': 'Netz-Ex-/Import', 'type': 'counter_s0', 'id': 0, 'configuration': {}}
2024-11-03 11:01:41,145 - {control.data:253} - {INFO:MainThread} -
2024-11-03 11:01:41,147 - {control.algorithm.algorithm:25} - {INFO:MainThread} - # Algorithmus
2024-11-03 11:01:41,148 - {control.algorithm.algorithm:30} - {INFO:MainThread} - **Mindestrom setzen**
2024-11-03 11:01:41,150 - {control.algorithm.min_current:20} - {INFO:MainThread} - Mode-Tuple Chargemode.PV_CHARGING - Chargemode.INSTANT_CHARGING - False, Zähler 0
2024-11-03 11:01:41,155 - {control.counter:179} - {DEBUG:MainThread} - Zähler 0: [35.31, 35.35, 35.33]A verbleibende Ströme, 26078.723955815367W verbleibende Leistung
2024-11-03 11:01:41,155 - {control.algorithm.common:90} - {INFO:MainThread} - LP2: Stromstärke 6A
2024-11-03 11:01:41,157 - {control.algorithm.algorithm:32} - {INFO:MainThread} - **Sollstrom setzen**
2024-11-03 11:01:41,163 - {control.algorithm.filter_chargepoints:102} - {DEBUG:MainThread} - Geordnete Ladepunkte [2]
2024-11-03 11:01:41,165 - {control.algorithm.additional_current:27} - {INFO:MainThread} - Mode-Tuple Chargemode.PV_CHARGING - Chargemode.INSTANT_CHARGING - False, Zähler 0
2024-11-03 11:01:41,167 - {control.algorithm.common:90} - {INFO:MainThread} - LP2: Stromstärke 6A
2024-11-03 11:01:41,170 - {control.counter:238} - {DEBUG:MainThread} - Anpassen des Regelbereichs 115.0W
2024-11-03 11:01:41,172 - {control.counter:501} - {DEBUG:MainThread} - Zähler 0: Begrenzung der verbleibenden Leistung auf 2193.723955815367W
2024-11-03 11:01:41,173 - {control.algorithm.algorithm:38} - {INFO:MainThread} - **PV-geführten Strom setzen**
2024-11-03 11:01:41,176 - {control.algorithm.filter_chargepoints:102} - {DEBUG:MainThread} - Geordnete Ladepunkte [2]
2024-11-03 11:01:41,176 - {control.algorithm.surplus_controlled:45} - {INFO:MainThread} - Mode-Tuple Chargemode.PV_CHARGING - Chargemode.INSTANT_CHARGING - False, Zähler 0
2024-11-03 11:01:41,177 - {control.loadmanagement:76} - {DEBUG:MainThread} - Leistungsüberschreitung auf 2193.723955815367W korrigieren: [10.0, 10.0, 10.0]
2024-11-03 11:01:41,177 - {control.algorithm.surplus_controlled:121} - {DEBUG:MainThread} - Ungenutzten Sollstrom aufschlagen ergibt 9.829310080891837A.
2024-11-03 11:01:41,178 - {control.counter:186} - {DEBUG:MainThread} - Zähler 0: [31.480689919108165, 31.520689919108165, 31.50068991910816]A verbleibende Ströme, -448.50000000000045W verbleibender Überschuss
2024-11-03 11:01:41,178 - {control.algorithm.common:90} - {INFO:MainThread} - LP2: Stromstärke 9.829310080891837A
2024-11-03 11:01:41,179 - {control.process:23} - {INFO:MainThread} - # Ladung starten.
2024-11-03 11:01:41,182 - {control.process:109} - {INFO:MainThread} - LP2: set current 9.83 A, state CHARGING_ALLOWED
2024-11-03 11:01:41,199 - {modules.common.component_context:25} - {DEBUG:set current cp2} - Update Komponente ['Ladepunkt']
2024-11-03 11:01:41,675 - {helpermodules.changed_values_handler:126} - {DEBUG:MainThread} - Topic openWB/set/chargepoint/get/power, Payload 4475.38, vorherige Payload: 4503.0
2024-11-03 11:01:41,676 - {helpermodules.changed_values_handler:126} - {DEBUG:MainThread} - Topic openWB/set/chargepoint/get/imported, Payload 5916589.84, vorherige Payload: 5916576.66
2024-11-03 11:01:41,678 - {helpermodules.changed_values_handler:126} - {DEBUG:MainThread} - Topic openWB/set/counter/set/invalid_home_consumption, Payload 1, vorherige Payload: 0
2024-11-03 11:01:41,684 - {helpermodules.changed_values_handler:126} - {DEBUG:MainThread} - Topic openWB/set/counter/0/get/fault_state, Payload 1, vorherige Payload: 0
2024-11-03 11:01:41,689 - {helpermodules.changed_values_handler:126} - {DEBUG:MainThread} - Topic openWB/set/counter/0/get/fault_str, Payload Hinweis: Es gibt mehr Stromerzeuger im Haus als in der openWB eingetragen sind. Der Hausverbrauch kann nicht korrekt berechnet werden. Dies hat auf die PV-Überschussladung keine negativen Auswirkungen., vorherige Payload: Kein Fehler.
2024-11-03 11:01:51,230 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -784.1709943018514W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:02:01,150 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -96.53733391187416W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:02:11,135 - {modules.common.simcount._simcount:51} - {WARNING:MainThread} - Time difference between previous state and current state is too large. Set time difference to control interval.
2024-11-03 11:02:21,204 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -80.44867960625652W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:02:31,073 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -73.34142383487779W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:02:41,108 - {modules.common.simcount._simcount:51} - {WARNING:MainThread} - Time difference between previous state and current state is too large. Set time difference to control interval.
2024-11-03 11:03:01,186 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -613.1774060453363W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:03:11,190 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -761.5176163904835W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:03:21,104 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -94.62595335072092W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:03:31,056 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -73.88750212785726W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:03:31,057 - {modules.common.simcount._simcount:51} - {WARNING:MainThread} - Time difference between previous state and current state is too large. Set time difference to control interval.
2024-11-03 11:03:40,889 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -88.20209782186794W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:03:50,887 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -77.01026543805983W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:04:20,531 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -498.67082429075435W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:04:30,450 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -592.4566582854159W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:04:40,596 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -127.12398642443986W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:04:50,499 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -12.606279541926597W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:04:50,511 - {modules.common.simcount._simcount:51} - {WARNING:MainThread} - Time difference between previous state and current state is too large. Set time difference to control interval.
2024-11-03 11:05:01,630 - {helpermodules.setdata:338} - {ERROR:Setdata} - Payload ungültig: Topic openWB/set/pv/1/get/yearly_exported, Payload -35610738.13261861 liegt in keinem der angegebenen Wertebereiche.
2024-11-03 11:05:01,635 - {helpermodules.setdata:338} - {ERROR:Setdata} - Payload ungültig: Topic openWB/set/pv/get/yearly_exported, Payload -35610738.13261861 liegt in keinem der angegebenen Wertebereiche.
2024-11-03 11:05:11,073 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -19.610204219491607W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:05:40,402 - {schedule:660} - {DEBUG:MainThread} - Running job Job(interval=1, unit=minutes, do=smarthome_handler, args=(), kwargs={})
2024-11-03 11:05:40,405 - {schedule:660} - {DEBUG:MainThread} - Running job Job(interval=1, unit=minutes, do=handler10Sec, args=(), kwargs={})
2024-11-03 11:05:40,406 - {root:75} - {INFO:MainThread} - # ***Start***
2024-11-03 11:05:40,443 - {modules.common.component_context:54} - {DEBUG:device0} - Update Komponenten ['Fronius Wechselrichter']
2024-11-03 11:05:40,451 - {urllib3.connectionpool:227} - {DEBUG:device0} - Starting new HTTP connection (1): 192.168.168.48:80
2024-11-03 11:05:40,463 - {modules.common.component_context:54} - {DEBUG:device1} - Update Komponenten ['Netz-Ex-/Import']
2024-11-03 11:05:40,475 - {urllib3.connectionpool:227} - {DEBUG:device1} - Starting new HTTP connection (1): 192.168.168.48:80
2024-11-03 11:05:40,475 - {modules.common.component_context:25} - {DEBUG:set values cp2} - Update Komponente ['Ladepunkt']
2024-11-03 11:05:40,497 - {urllib3.connectionpool:452} - {DEBUG:device0} - http://192.168.168.48:80 "GET /solar_api/v1/GetPowerFlowRealtimeData.fcgi?Scope=System HTTP/1.1" 200 1129
2024-11-03 11:05:40,501 - {modules.common.req:32} - {DEBUG:device0} - Get-Response: {
"Body" : {
"Data" : {
"Inverters" : {
"1" : {
"DT" : 105,
"E_Day" : 3583,
"E_Total" : 67782008,
"E_Year" : 6794072,
"P" : 2695
},
"2" : {
"DT" : 115,
"E_Day" : 4703,
"E_Total" : 54318100,
"E_Year" : 11629015,
"P" : 2761
}
},
"Site" : {
"E_Day" : 8286,
"E_Total" : 122100108,
"E_Year" : 18423087,
"Meter_Location" : "load",
"Mode" : "vague-meter",
"P_Akku" : null,
"P_Grid" : -1398.9000758582179,
"P_Load" : -4057.0999241417821,
"P_PV" : 5456,
"rel_Autonomy" : 100,
"rel_SelfConsumption" : 74.360335853038535
},
"Version" : "12"
}
},
"Head" : {
"RequestArguments" : {},
"Status" : {
"Code" : 0,
"Reason" : "",
"UserMessage" : ""
},
"Timestamp" : "2024-11-03T11:05:40+01:00"
}
}
2024-11-03 11:05:40,505 - {modules.common.simcount._simcount:42} - {DEBUG:device0} - Previous state: SimCounterState(timestamp=1730628330.6604466, power=-5436.0, imported=0.0, exported=3769221.9330422706)
2024-11-03 11:05:40,507 - {modules.common.simcount._calculate:11} - {DEBUG:device0} - time passed: 0.00273469, power1: -5436, power2: -5456
2024-11-03 11:05:40,508 - {modules.common.simcount._calculate:27} - {DEBUG:device0} - power did not change sign. Total energy: -14.8931
2024-11-03 11:05:40,509 - {modules.common.simcount._simcount:65} - {DEBUG:device0} - imported: 0 Wh, exported: 14.8931 Wh, new state: SimCounterState(timestamp=1730628340.505326, power=-5456.0, imported=0.0, exported=3769236.826157035)
2024-11-03 11:05:40,511 - {modules.common.store._api:26} - {DEBUG:device0} - Raw data InverterState(currents=[0.0, 0.0, 0.0], power=-5456.0, exported=3769236.826157035, dc_power=None)
2024-11-03 11:05:40,545 - {urllib3.connectionpool:452} - {DEBUG:device1} - http://192.168.168.48:80 "GET /solar_api/v1/GetPowerFlowRealtimeData.fcgi HTTP/1.1" 200 1129
2024-11-03 11:05:40,547 - {modules.common.req:32} - {DEBUG:device1} - Get-Response: {
"Body" : {
"Data" : {
"Inverters" : {
"1" : {
"DT" : 105,
"E_Day" : 3583,
"E_Total" : 67782008,
"E_Year" : 6794072,
"P" : 2695
},
"2" : {
"DT" : 115,
"E_Day" : 4703,
"E_Total" : 54318100,
"E_Year" : 11629015,
"P" : 2761
}
},
"Site" : {
"E_Day" : 8286,
"E_Total" : 122100108,
"E_Year" : 18423087,
"Meter_Location" : "load",
"Mode" : "vague-meter",
"P_Akku" : null,
"P_Grid" : -1398.9000758582179,
"P_Load" : -4057.0999241417821,
"P_PV" : 5456,
"rel_Autonomy" : 100,
"rel_SelfConsumption" : 74.360335853038535
},
"Version" : "12"
}
},
"Head" : {
"RequestArguments" : {},
"Status" : {
"Code" : 0,
"Reason" : "",
"UserMessage" : ""
},
"Timestamp" : "2024-11-03T11:05:40+01:00"
}
}
2024-11-03 11:05:40,556 - {modules.common.simcount._simcount:42} - {DEBUG:device1} - Previous state: SimCounterState(timestamp=1730628330.673216, power=-241.19477704621204, imported=346098.3749272318, exported=3206724.552949004)
2024-11-03 11:05:40,557 - {modules.common.simcount._calculate:11} - {DEBUG:device1} - time passed: 0.00274538, power1: -241.195, power2: -1398.9
2024-11-03 11:05:40,560 - {modules.common.simcount._calculate:27} - {DEBUG:device1} - power did not change sign. Total energy: -2.25134
2024-11-03 11:05:40,561 - {modules.common.simcount._simcount:65} - {DEBUG:device1} - imported: 0 Wh, exported: 2.25134 Wh, new state: SimCounterState(timestamp=1730628340.5565903, power=-1398.9000758582179, imported=346098.3749272318, exported=3206726.804292223)
2024-11-03 11:05:40,564 - {modules.common.store._api:26} - {DEBUG:device1} - Raw data CounterState(currents=[0.0, 0.0, 0.0], powers=[0.0, 0.0, 0.0], voltages=[230.0, 230.0, 230.0], power_factors=[0.0, 0.0, 0.0], imported=346098.3749272318, exported=3206726.804292223, power=-1398.9000758582179, frequency=50)
2024-11-03 11:05:40,626 - {modules.common.component_context:25} - {DEBUG:component1} - Update Komponente ['Fronius Wechselrichter']
2024-11-03 11:05:40,629 - {modules.common.store._api:26} - {DEBUG:component1} - Raw data InverterState(currents=[0.0, 0.0, 0.0], power=-5456.0, exported=3769236.826157035, dc_power=None)
2024-11-03 11:05:40,632 - {modules.common.store._api:31} - {INFO:component1} - Saving InverterState(currents=[0.0, 0.0, 0.0], power=-5456.0, exported=3769236.826157035, dc_power=None)
2024-11-03 11:05:40,635 - {modules.common.component_context:25} - {DEBUG:update values cp2} - Update Komponente ['Ladepunkt']
2024-11-03 11:05:40,884 - {modules.common.component_context:25} - {DEBUG:component0} - Update Komponente ['Netz-Ex-/Import']
2024-11-03 11:05:40,888 - {modules.common.store._api:31} - {INFO:component0} - Saving CounterState(currents=[0.0, 0.0, 0.0], powers=[0.0, 0.0, 0.0], voltages=[230.0, 230.0, 230.0], power_factors=[0.0, 0.0, 0.0], imported=346098.3749272318, exported=3206726.804292223, power=-1398.9000758582179, frequency=50)
2024-11-03 11:05:41,012 - {modules.common.component_context:25} - {DEBUG:get ripple control receiver} - Update Komponente ['GPIOs auf der AddOn-Platine']
2024-11-03 11:05:41,013 - {modules.ripple_control_receivers.gpio.ripple_control_receiver:35} - {DEBUG:get ripple control receiver} - RSE-Kontakt 1: False, RSE-Kontakt 2: False
2024-11-03 11:05:41,013 - {modules.common.store._api:26} - {DEBUG:get ripple control receiver} - Raw data RcrState(override_value=100)
2024-11-03 11:05:41,019 - {modules.common.component_context:25} - {DEBUG:set ripple control receiver} - Update Komponente ['GPIOs auf der AddOn-Platine']
2024-11-03 11:05:41,021 - {modules.common.store._api:31} - {INFO:set ripple control receiver} - Saving RcrState(override_value=100)
2024-11-03 11:05:41,107 - {control.counter:148} - {INFO:MainThread} - Verbleibende Ströme an Zähler 0: [41.31, 41.3, 41.31]A
2024-11-03 11:05:41,108 - {control.counter:171} - {INFO:MainThread} - Verbleibende Leistung an Zähler 0: 29856.22007585822W
2024-11-03 11:05:41,114 - {control.chargepoint.chargepoint:557} - {DEBUG:MainThread} - EV-Phasenzahl beschränkt die nutzbaren Phasen auf 3
2024-11-03 11:05:41,122 - {control.chargepoint.chargepoint:682} - {INFO:MainThread} - LP 2, EV: Standard-Fahrzeug (EV-Nr.0): Theoretisch benötigter Strom 6A, Lademodus pv_charging, Submodus: Chargemode.INSTANT_CHARGING, Phasen: 3, Priorität: False, max. Ist-Strom: 6.31
2024-11-03 11:05:41,125 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -400.22007585821757W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 11:05:41,128 - {control.data:236} - {INFO:MainThread} - bat_all_data
BatAllData(config=Config(configured=False), get=Get(soc=0, daily_exported=0.0, daily_imported=0.0, fault_str='Kein Fehler.', fault_state=0, imported=0, exported=0, power=0), set=Set(charging_power_left=0, regulate_up=False))
2024-11-03 11:05:41,129 - {control.data:237} - {INFO:MainThread} - cp_all_data
AllChargepointData(get=AllGet(daily_imported=3929.0, daily_exported=0.0, power=4457.32, imported=5916942.87, exported=0))
2024-11-03 11:05:41,131 - {control.data:266} - {INFO:MainThread} - cp2
ChargepointData(control_parameter=ControlParameter(chargemode=<Chargemode.PV_CHARGING: 'pv_charging'>, current_plan=None, failed_phase_switches=0, imported_at_plan_start=None, imported_instant_charging=None, limit=', da die maximale Leistung an Zähler {} erreicht ist.', phases=3, prio=False, required_current=6, required_currents=[6, 6, 6], state=4, submode=<Chargemode.INSTANT_CHARGING: 'instant_charging'>, timestamp_auto_phase_switch=None, timestamp_perform_phase_switch=None, timestamp_switch_on_off=None), get=Get(charge_state=True, connected_vehicle=ConnectedVehicle(config=ConnectedConfig(average_consumption=17, charge_template=0, chargemode='stop', current_plan=0, ev_template=0, priority=False, time_charging_in_use=False), info=ConnectedInfo(id=0, name='Ladepunkt'), soc=18.69), currents=[6.31, 6.3, 6.31], daily_imported=3929.0, daily_exported=0.0, evse_current=7, exported=0, fault_str='Kein Fehler.', fault_state=0, imported=5916942.87, phases_in_use=3, plug_state=True, power=4457.32, rfid_timestamp=None, rfid=None, serial_number='20202752', soc=None, soc_timestamp=None, state_str=None, vehicle_id=None, voltages=[238.11, 238.06, 233.58]), set=Set(charging_ev=0, charging_ev_prev=0, current=7.65, energy_to_charge=0, loadmanagement_available=True, log=Log(chargemode_log_entry='pv_charging', costs=0.4316, imported_at_mode_switch=5912943.85, imported_at_plugtime=5912943.85, imported_since_mode_switch=3985.8400000007823, imported_since_plugged=3985.8400000007823, range_charged=23.446117647063424, time_charged='0:43', timestamp_start_charging=1730625691.053918, ev=0, prio=False, rfid=None, serial_number=None, soc_at_start=13, soc_at_end=None, range_at_start=None, range_at_end=None), manual_lock=False, phases_to_use=3, plug_state_prev=True, plug_time=1730625680.341206, required_power=4140, rfid=None, target_current=0, charging_ev_data=<control.ev.Ev object at 0x6e7cd5c8>), config=Config(configuration={'mode': 'series', 'ip_address': 'localhost', 'duo_num': 0}, ev=0, name='Ladeleistung', type='internal_openwb', template=0, connected_phases=3, phase_1=1, auto_phase_switch_hw=True, control_pilot_interruption_hw=False, id=2))
2024-11-03 11:05:41,133 - {control.data:266} - {INFO:MainThread} - cpt0
CpTemplateData(autolock=Autolock(active=False, plans={}, wait_for_charging_end=False), id=0, max_current_multi_phases=32, max_current_single_phase=32, name='Standard Ladepunkt-Profil', disable_after_unplug=False, valid_tags=[])
2024-11-03 11:05:41,135 - {control.data:266} - {INFO:MainThread} - counter0
CounterData(config=Config(max_currents=[35, 35, 35], max_total_power=24000), get=Get(powers=[0.0, 0.0, 0.0], currents=[0.0, 0.0, 0.0], voltages=[230.0, 230.0, 230.0], power_factors=[0.0, 0.0, 0.0], frequency=50, daily_exported=3097.0, daily_imported=2819.0, imported=346098.3749272318, exported=3206726.804292223, fault_state=1, fault_str='Hinweis: Es gibt mehr Stromerzeuger im Haus als in der openWB eingetragen sind. Der Hausverbrauch kann nicht korrekt berechnet werden. Dies hat auf die PV-Überschussladung keine negativen Auswirkungen.', power=-1398.9000758582179), set=Set(error_counter=0, reserved_surplus=0, released_surplus=0, raw_power_left=29856.22007585822, raw_currents_left=[41.31, 41.3, 41.31], surplus_power_left=0))
2024-11-03 11:05:41,138 - {control.data:241} - {INFO:MainThread} - counter_all_data
CounterAllData(config=Config(home_consumption_source_id=None, reserve_for_not_charging=False), get=Get(hierarchy=[{'id': 0, 'type': 'counter', 'children': [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]}]), set=Set(loadmanagement_active=False, home_consumption=735.1052229537881, smarthome_power_excluded_from_home_consumption=0, invalid_home_consumption=1, daily_yield_home_consumption=4090.0, imported_home_consumption=657719.9471599475, disengageable_smarthome_power=0))
2024-11-03 11:05:41,141 - {control.data:266} - {INFO:MainThread} - ct0
ChargeTemplateData(name='Standard-Lade-Profil', prio=False, load_default=False, et=Et(active=False, max_price=0.0002), time_charging=TimeCharging(active=False, plans={}), chargemode=Chargemode(selected='pv_charging', pv_charging=PvCharging(min_soc_current=10, min_current=6, feed_in_limit=False, min_soc=0, max_soc=100), scheduled_charging=ScheduledCharging(plans={}), instant_charging=InstantCharging(current=16, limit=Limit(selected='none', amount=1000, soc=50))))
2024-11-03 11:05:41,144 - {control.data:266} - {INFO:MainThread} - ev0
EvData(set=Set(soc_error_counter=0), charge_template=0, ev_template=0, name='Standard-Fahrzeug', tag_id=[], get=Get(soc=18.69, soc_timestamp=1730628094.447061, force_soc_update=False, range=None, fault_state=0, fault_str='Kein Fehler.'))
2024-11-03 11:05:41,146 - {control.data:266} - {INFO:MainThread} - et0
EvTemplateData(name='Standard-Fahrzeug-Profil', max_current_multi_phases=16, max_phases=3, phase_switch_pause=2, prevent_phase_switch=False, prevent_charge_stop=False, control_pilot_interruption=False, control_pilot_interruption_duration=4, average_consump=17000, min_current=6, max_current_single_phase=32, battery_capacity=62000, efficiency=97, nominal_difference=1, keep_charge_active_duration=40)
2024-11-03 11:05:41,149 - {control.data:245} - {INFO:MainThread} - general_data
GeneralData(chargemode_config=ChargemodeConfig(instant_charging=InstantCharging(phases_to_use=3), phase_switch_delay=7, pv_charging=PvCharging(bat_power_reserve=200, bat_power_reserve_active=True, control_range=[0, 230], feed_in_yield=0, phase_switch_delay=7, phases_to_use=3, bat_power_discharge=1000, bat_power_discharge_active=True, min_bat_soc=50, bat_mode='min_soc_bat_mode', switch_off_delay=60, switch_off_threshold=50, switch_on_delay=30, switch_on_threshold=1500), retry_failed_phase_switches=False, scheduled_charging=ScheduledCharging(phases_to_use=0, phases_to_use_pv=0), time_charging=TimeCharging(phases_to_use=3), unbalanced_load_limit=18, unbalanced_load=False), control_interval=10, extern_display_mode='primary', extern=False, external_buttons_hw=False, grid_protection_active=False, grid_protection_configured=True, grid_protection_random_stop=0, grid_protection_timestamp=None, http_api=False, mqtt_bridge=False, prices=Prices(bat=0.0002, cp=0, grid=0.0003, pv=0.00012), range_unit='km', ripple_control_receiver=RippleControlReceiver(get=RippleControlReceiverGet(fault_state=0, fault_str='Kein Fehler.', override_value=100), module={'name': 'GPIOs auf der AddOn-Platine', 'type': 'gpio', 'configuration': {}}, override_reference=<OverrideReference.CHARGEPOINT: 'chargepoint'>))
2024-11-03 11:05:41,150 - {control.data:246} - {INFO:MainThread} - general_data-display
primary
2024-11-03 11:05:41,151 - {control.data:247} - {INFO:MainThread} - graph_data
GraphData(config=Config(duration=120))
2024-11-03 11:05:41,152 - {control.data:248} - {INFO:MainThread} - optional_data
OptionalData(et=Et(get=EtGet(fault_state=0, fault_str='Kein Fehler.', prices={})), int_display=InternalDisplay(active=True, on_if_plugged_in=True, pin_active=False, pin_code='0000', standby=60, theme=<modules.display_themes.cards.config.CardsDisplayTheme object at 0x7580de80>), led=Led(active=False), rfid=Rfid(active=False))
2024-11-03 11:05:41,154 - {control.data:266} - {INFO:MainThread} - pv1
PvData(config=Config(max_ac_out=0), get=Get(currents=[0.0, 0.0, 0.0], daily_exported=8197.0, monthly_exported=28421.76199999964, yearly_exported=0, exported=3769236.826, fault_state=0, fault_str='Kein Fehler.', power=-5456.0))
2024-11-03 11:05:41,156 - {control.data:250} - {INFO:MainThread} - pv_all_data
PvAllData(config=Config(configured=True), get=Get(daily_exported=8197.0, fault_str='Kein Fehler.', fault_state=0, monthly_exported=28421.76199999964, yearly_exported=0, exported=3769236.826, power=-5456.0))
2024-11-03 11:05:41,158 - {control.data:266} - {INFO:MainThread} - system
{'update_in_progress': False, 'perform_update': False, 'backup_cloud': {'backup_before_update': True}, 'ip_address': '192.168.168.30', 'current_commit': '2024-09-17 11:33:20 +0200 [141a182ad]', 'current_branch': 'Release', 'current_branch_commit': '2024-09-17 11:33:20 +0200 [141a182ad]', 'current_missing_commits': [], 'dataprotection_acknowledged': True, 'datastore_version': 55, 'usage_terms_acknowledged': True, 'debug_level': 10, 'release_train': 'master', 'version': '2.1.5-Patch.2', 'boot_done': True, 'installAssistantDone': True, 'lastlivevaluesJson': {'timestamp': 1730628330, 'time': '11:05:30', 'grid': -0.241, 'house-power': 0.735, 'charging-all': 4.46, 'pv-all': 5.436, 'cp2-power': 4.46, 'ev0-soc': 18.69}, 'module_update_completed': True}
2024-11-03 11:05:41,160 - {control.data:279} - {INFO:MainThread} - device0
{'name': 'Fronius', 'type': 'fronius', 'id': 0, 'configuration': {'ip_address': '192.168.168.48'}}
2024-11-03 11:05:41,161 - {control.data:281} - {INFO:MainThread} - component1
{'name': 'Fronius Wechselrichter', 'type': 'inverter', 'id': 1, 'configuration': {}}
2024-11-03 11:05:41,163 - {control.data:279} - {INFO:MainThread} - device1
{'name': 'Fronius', 'type': 'fronius', 'id': 1, 'configuration': {'ip_address': '192.168.168.48'}}
2024-11-03 11:05:41,166 - {control.data:281} - {INFO:MainThread} - component0
{'name': 'Netz-Ex-/Import', 'type': 'counter_s0', 'id': 0, 'configuration': {}}
2024-11-03 11:05:41,167 - {control.data:253} - {INFO:MainThread} -
2024-11-03 11:05:41,169 - {control.algorithm.algorithm:25} - {INFO:MainThread} - # Algorithmus
2024-11-03 11:05:41,170 - {control.algorithm.algorithm:30} - {INFO:MainThread} - **Mindestrom setzen**
2024-11-03 11:05:41,175 - {control.algorithm.min_current:20} - {INFO:MainThread} - Mode-Tuple Chargemode.PV_CHARGING - Chargemode.INSTANT_CHARGING - False, Zähler 0
2024-11-03 11:05:41,177 - {control.counter:179} - {DEBUG:MainThread} - Zähler 0: [35.31, 35.3, 35.31]A verbleibende Ströme, 25716.22007585822W verbleibende Leistung
2024-11-03 11:05:41,179 - {control.algorithm.common:90} - {INFO:MainThread} - LP2: Stromstärke 6A
2024-11-03 11:05:41,181 - {control.algorithm.algorithm:32} - {INFO:MainThread} - **Sollstrom setzen**
2024-11-03 11:05:41,189 - {control.algorithm.filter_chargepoints:102} - {DEBUG:MainThread} - Geordnete Ladepunkte [2]
2024-11-03 11:05:41,193 - {control.algorithm.additional_current:27} - {INFO:MainThread} - Mode-Tuple Chargemode.PV_CHARGING - Chargemode.INSTANT_CHARGING - False, Zähler 0
2024-11-03 11:05:41,196 - {control.algorithm.common:90} - {INFO:MainThread} - LP2: Stromstärke 6A
2024-11-03 11:05:41,210 - {control.counter:238} - {DEBUG:MainThread} - Anpassen des Regelbereichs 115.0W
2024-11-03 11:05:41,212 - {control.counter:501} - {DEBUG:MainThread} - Zähler 0: Begrenzung der verbleibenden Leistung auf 1831.2200758582185W
2024-11-03 11:05:41,213 - {control.algorithm.algorithm:38} - {INFO:MainThread} - **PV-geführten Strom setzen**
2024-11-03 11:05:41,218 - {control.algorithm.filter_chargepoints:102} - {DEBUG:MainThread} - Geordnete Ladepunkte [2]
2024-11-03 11:05:41,220 - {control.algorithm.surplus_controlled:45} - {INFO:MainThread} - Mode-Tuple Chargemode.PV_CHARGING - Chargemode.INSTANT_CHARGING - False, Zähler 0
2024-11-03 11:05:41,221 - {control.loadmanagement:76} - {DEBUG:MainThread} - Leistungsüberschreitung auf 1831.2200758582185W korrigieren: [10.0, 10.0, 10.0]
2024-11-03 11:05:41,226 - {control.algorithm.surplus_controlled:121} - {DEBUG:MainThread} - Ungenutzten Sollstrom aufschlagen ergibt 9.343942138924955A.
2024-11-03 11:05:41,227 - {control.counter:186} - {DEBUG:MainThread} - Zähler 0: [31.966057861075047, 31.956057861075042, 31.966057861075047]A verbleibende Ströme, -476.1000000000008W verbleibender Überschuss
2024-11-03 11:05:41,229 - {control.algorithm.common:90} - {INFO:MainThread} - LP2: Stromstärke 9.343942138924955A
2024-11-03 11:05:41,231 - {control.process:23} - {INFO:MainThread} - # Ladung starten.
2024-11-03 11:05:41,234 - {control.process:109} - {INFO:MainThread} - LP2: set current 9.34 A, state CHARGING_ALLOWED
2024-11-03 11:05:41,236 - {modules.common.component_context:25} - {DEBUG:set current cp2} - Update Komponente ['Ladepunkt']
2024-11-03 11:05:41,678 - {helpermodules.changed_values_handler:126} - {DEBUG:MainThread} - Topic openWB/set/chargepoint/get/power, Payload 4457.32, vorherige Payload: 4459.7
2024-11-03 11:05:41,680 - {helpermodules.changed_values_handler:126} - {DEBUG:MainThread} - Topic openWB/set/chargepoint/get/imported, Payload 5916942.87, vorherige Payload: 5916929.69
2024-11-03 11:05:41,682 - {helpermodules.changed_values_handler:126} - {DEBUG:MainThread} - Topic openWB/set/counter/set/invalid_home_consumption, Payload 1, vorherige Payload: 0
2024-11-03 11:05:41,698 - {helpermodules.changed_values_handler:126} - {DEBUG:MainThread} - Topic openWB/set/counter/0/get/fault_state, Payload 1, vorherige Payload: 0
2024-11-03 11:05:41,702 - {helpermodules.changed_values_handler:126} - {DEBUG:MainThread} - Topic openWB/set/counter/0/get/fault_str, Payload Hinweis: Es gibt mehr Stromerzeuger im Haus als in der openWB eingetragen sind. Der Hausverbrauch kann nicht korrekt berechnet werden. Dies hat auf die PV-Überschussladung keine negativen Auswirkungen., vorherige Payload: Kein Fehler.
2024-11-03 11:05:45,714 - {schedule:660} - {DEBUG:MainThread} - Running job Job(interval=1, unit=minutes, do=smarthome_handler, args=(), kwargs={})
2024-11-03 11:05:50,727 - {schedule:660} - {DEBUG:MainThread} - Running job Job(interval=1, unit=minutes, do=smarthome_handler, args=(), kwargs={})
2024-11-03 11:05:50,729 - {schedule:660} - {DEBUG:MainThread} - Running job Job(interval=1, unit=minutes, do=handler10Sec, args=(), kwargs={})
2024-11-03 11:05:50,730 - {root:75} - {INFO:MainThread} - # ***Start***
- Dateianhänge
-
- Bild.jpg
- (63.93 KiB) Noch nie heruntergeladen
openWB series2 standard+, PV ohne Speicher
Re: PV-Laden unterbricht und startet immer wieder neu
Heutiges Laden wurde laut Ladeprotokoll 2 mal unterbrochen (da waren die beiden großen Ausschläge im Diagramm) und um ca. 15:05 Uhr von alleine abgebrochen.
Debug Level stand aber leider nur auf "Warnungen und Fehler". Hier dennoch die Auszüge um diese Zeitpunkte:
Wenn es ohne Details nichts nützt, muss ich auf das nächste Laden warten.
Debug Level stand aber leider nur auf "Warnungen und Fehler". Hier dennoch die Auszüge um diese Zeitpunkte:
Code: Alles auswählen
2024-11-03 13:44:50,468 - {modules.common.simcount._simcount:51} - {WARNING:MainThread} - Time difference between previous state and current state is too large. Set time difference to control interval.
2024-11-03 13:45:02,479 - {helpermodules.setdata:338} - {ERROR:Setdata} - Payload ungültig: Topic openWB/set/pv/1/get/yearly_exported, Payload -35597309.64261861 liegt in keinem der angegebenen Wertebereiche.
2024-11-03 13:45:02,488 - {helpermodules.setdata:338} - {ERROR:Setdata} - Payload ungültig: Topic openWB/set/pv/get/yearly_exported, Payload -35597309.64261861 liegt in keinem der angegebenen Wertebereiche.
2024-11-03 13:45:03,020 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -403.77814376378683W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 13:45:10,826 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -261.93317887102694W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 13:45:20,701 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -290.0372350066327W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 13:45:40,416 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -267.0469554668025W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 13:45:50,460 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -258.4953824324066W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
...
2024-11-03 14:18:31,231 - {modules.common.simcount._simcount:51} - {WARNING:MainThread} - Time difference between previous state and current state is too large. Set time difference to control interval.
2024-11-03 14:18:41,072 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -382.23444482770446W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 14:18:50,966 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -373.40202577466516W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 14:19:00,946 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -998.1839933748643W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-03 14:19:20,929 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -392.4361616424999W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
...
2024-11-04 15:00:01,919 - {helpermodules.setdata:338} - {ERROR:Setdata} - Payload ungültig: Topic openWB/set/pv/1/get/yearly_exported, Payload -35555011.94661862 liegt in keinem der angegebenen Wertebereiche.
2024-11-04 15:00:01,943 - {helpermodules.setdata:338} - {ERROR:Setdata} - Payload ungültig: Topic openWB/set/pv/get/yearly_exported, Payload -35555011.94661862 liegt in keinem der angegebenen Wertebereiche.
2024-11-04 15:00:03,513 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -324.5002579678512W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:00:10,394 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -951.2487006105157W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:00:21,298 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -1080.395063175678W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:00:21,300 - {modules.common.simcount._simcount:51} - {WARNING:MainThread} - Time difference between previous state and current state is too large. Set time difference to control interval.
2024-11-04 15:00:31,321 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -230.3137242336279W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:00:41,352 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -273.5945522172342W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:00:51,343 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -269.8926188756541W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:01:01,340 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -297.9767663812818W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:01:11,161 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -282.4267663812816W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:01:21,151 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -917.262085892663W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:01:31,027 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -792.8600686645495W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:01:42,077 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -281.8930069359458W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:01:50,977 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -295.9899834108164W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:02:00,936 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -332.3376160151802W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:02:11,929 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -210.62650243685675W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:02:30,777 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -233.51461215200288W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:02:40,790 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -923.0646867131W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:02:50,727 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -1049.9782091131592W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:03:00,722 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -257.63375416921554W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:03:00,724 - {modules.common.simcount._simcount:51} - {WARNING:MainThread} - Time difference between previous state and current state is too large. Set time difference to control interval.
2024-11-04 15:03:10,604 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -228.4565914087516W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:03:20,471 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -212.17654692280485W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:03:31,332 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -198.6004901267188W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:04:01,226 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -714.4301796570744W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:04:11,309 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -788.7709638848119W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:04:21,168 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -290.31996234488906W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:04:31,037 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -168.934841815244W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:04:31,041 - {modules.common.simcount._simcount:51} - {WARNING:MainThread} - Time difference between previous state and current state is too large. Set time difference to control interval.
2024-11-04 15:04:45,349 - {modules.common.fault_state:49} - {ERROR:device0} - Fronius Wechselrichter: FaultState FaultStateLevel.ERROR, FaultStr OSError None: Unbekannter Fehler None, Traceback:
Traceback (most recent call last):
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 445, in _make_request
six.raise_from(e, None)
File "<string>", line 3, in raise_from
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 440, in _make_request
httplib_response = conn.getresponse()
File "/usr/lib/python3.9/http/client.py", line 1347, in getresponse
response.begin()
File "/usr/lib/python3.9/http/client.py", line 307, in begin
version, status, reason = self._read_status()
File "/usr/lib/python3.9/http/client.py", line 268, in _read_status
line = str(self.fp.readline(_MAXLINE + 1), "iso-8859-1")
File "/usr/lib/python3.9/socket.py", line 704, in readinto
return self._sock.recv_into(b)
socket.timeout: timed out
During handling of the above exception, another exception occurred:
Traceback (most recent call last):
File "/usr/lib/python3/dist-packages/requests/adapters.py", line 439, in send
resp = conn.urlopen(
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 755, in urlopen
retries = retries.increment(
File "/usr/lib/python3/dist-packages/urllib3/util/retry.py", line 532, in increment
raise six.reraise(type(error), error, _stacktrace)
File "/usr/lib/python3/dist-packages/six.py", line 719, in reraise
raise value
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 699, in urlopen
httplib_response = self._make_request(
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 447, in _make_request
self._raise_timeout(err=e, url=url, timeout_value=read_timeout)
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 336, in _raise_timeout
raise ReadTimeoutError(
urllib3.exceptions.ReadTimeoutError: HTTPConnectionPool(host='192.168.168.48', port=80): Read timed out. (read timeout=3)
During handling of the above exception, another exception occurred:
Traceback (most recent call last):
File "/var/www/html/openWB/packages/modules/common/configurable_device.py", line 36, in __call__
self.__updater(components_list)
File "/var/www/html/openWB/packages/modules/devices/fronius/device.py", line 47, in update_components
inverter_response = req.get_http_session().get(
File "/usr/lib/python3/dist-packages/requests/sessions.py", line 555, in get
return self.request('GET', url, **kwargs)
File "/var/www/html/openWB/packages/modules/common/req.py", line 16, in request
return super().request(method, url, *args, **kwargs)
File "/usr/lib/python3/dist-packages/requests/sessions.py", line 542, in request
resp = self.send(prep, **send_kwargs)
File "/usr/lib/python3/dist-packages/requests/sessions.py", line 655, in send
r = adapter.send(request, **kwargs)
File "/usr/lib/python3/dist-packages/requests/adapters.py", line 529, in send
raise ReadTimeout(e, request=request)
requests.exceptions.ReadTimeout: HTTPConnectionPool(host='192.168.168.48', port=80): Read timed out. (read timeout=3)
2024-11-04 15:04:47,350 - {modules.common.fault_state:49} - {ERROR:device1} - Netz-Ex-/Import: FaultState FaultStateLevel.ERROR, FaultStr OSError None: Unbekannter Fehler None, Traceback:
Traceback (most recent call last):
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 445, in _make_request
six.raise_from(e, None)
File "<string>", line 3, in raise_from
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 440, in _make_request
httplib_response = conn.getresponse()
File "/usr/lib/python3.9/http/client.py", line 1347, in getresponse
response.begin()
File "/usr/lib/python3.9/http/client.py", line 307, in begin
version, status, reason = self._read_status()
File "/usr/lib/python3.9/http/client.py", line 268, in _read_status
line = str(self.fp.readline(_MAXLINE + 1), "iso-8859-1")
File "/usr/lib/python3.9/socket.py", line 704, in readinto
return self._sock.recv_into(b)
socket.timeout: timed out
During handling of the above exception, another exception occurred:
Traceback (most recent call last):
File "/usr/lib/python3/dist-packages/requests/adapters.py", line 439, in send
resp = conn.urlopen(
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 755, in urlopen
retries = retries.increment(
File "/usr/lib/python3/dist-packages/urllib3/util/retry.py", line 532, in increment
raise six.reraise(type(error), error, _stacktrace)
File "/usr/lib/python3/dist-packages/six.py", line 719, in reraise
raise value
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 699, in urlopen
httplib_response = self._make_request(
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 447, in _make_request
self._raise_timeout(err=e, url=url, timeout_value=read_timeout)
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 336, in _raise_timeout
raise ReadTimeoutError(
urllib3.exceptions.ReadTimeoutError: HTTPConnectionPool(host='192.168.168.48', port=80): Read timed out. (read timeout=5)
During handling of the above exception, another exception occurred:
Traceback (most recent call last):
File "/var/www/html/openWB/packages/modules/common/configurable_device.py", line 36, in __call__
self.__updater(components_list)
File "/var/www/html/openWB/packages/modules/devices/fronius/device.py", line 60, in update_components
component.update()
File "/var/www/html/openWB/packages/modules/devices/fronius/counter_s0.py", line 28, in update
response = session.get(
File "/usr/lib/python3/dist-packages/requests/sessions.py", line 555, in get
return self.request('GET', url, **kwargs)
File "/var/www/html/openWB/packages/modules/common/req.py", line 16, in request
return super().request(method, url, *args, **kwargs)
File "/usr/lib/python3/dist-packages/requests/sessions.py", line 542, in request
resp = self.send(prep, **send_kwargs)
File "/usr/lib/python3/dist-packages/requests/sessions.py", line 655, in send
r = adapter.send(request, **kwargs)
File "/usr/lib/python3/dist-packages/requests/adapters.py", line 529, in send
raise ReadTimeout(e, request=request)
requests.exceptions.ReadTimeout: HTTPConnectionPool(host='192.168.168.48', port=80): Read timed out. (read timeout=5)
2024-11-04 15:04:47,384 - {modules.common.utils.component_parser:33} - {ERROR:MainThread} - Fehlerstatus in Komponente Netz-Ex-/Import. Werte werden nicht aktualisiert.
2024-11-04 15:04:47,469 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -109.14999999999964W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:04:53,146 - {modules.common.simcount._simcount:51} - {WARNING:device0} - Time difference between previous state and current state is too large. Set time difference to control interval.
2024-11-04 15:04:55,151 - {modules.common.fault_state:49} - {ERROR:device1} - Netz-Ex-/Import: FaultState FaultStateLevel.ERROR, FaultStr Die Verbindung zum Server http://192.168.168.48/solar_api/v1/GetPowerFlowRealtimeData.fcgi ist fehlgeschlagen. Überprüfe Adresse und Netzwerk., Traceback:
Traceback (most recent call last):
File "/usr/lib/python3/dist-packages/urllib3/connection.py", line 169, in _new_conn
conn = connection.create_connection(
File "/usr/lib/python3/dist-packages/urllib3/util/connection.py", line 96, in create_connection
raise err
File "/usr/lib/python3/dist-packages/urllib3/util/connection.py", line 86, in create_connection
sock.connect(sa)
socket.timeout: timed out
During handling of the above exception, another exception occurred:
Traceback (most recent call last):
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 699, in urlopen
httplib_response = self._make_request(
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 394, in _make_request
conn.request(method, url, **httplib_request_kw)
File "/usr/lib/python3/dist-packages/urllib3/connection.py", line 234, in request
super(HTTPConnection, self).request(method, url, body=body, headers=headers)
File "/usr/lib/python3.9/http/client.py", line 1255, in request
self._send_request(method, url, body, headers, encode_chunked)
File "/usr/lib/python3.9/http/client.py", line 1301, in _send_request
self.endheaders(body, encode_chunked=encode_chunked)
File "/usr/lib/python3.9/http/client.py", line 1250, in endheaders
self._send_output(message_body, encode_chunked=encode_chunked)
File "/usr/lib/python3.9/http/client.py", line 1010, in _send_output
self.send(msg)
File "/usr/lib/python3.9/http/client.py", line 950, in send
self.connect()
File "/usr/lib/python3/dist-packages/urllib3/connection.py", line 200, in connect
conn = self._new_conn()
File "/usr/lib/python3/dist-packages/urllib3/connection.py", line 174, in _new_conn
raise ConnectTimeoutError(
urllib3.exceptions.ConnectTimeoutError: (<urllib3.connection.HTTPConnection object at 0x6ddada90>, 'Connection to 192.168.168.48 timed out. (connect timeout=5)')
During handling of the above exception, another exception occurred:
Traceback (most recent call last):
File "/usr/lib/python3/dist-packages/requests/adapters.py", line 439, in send
resp = conn.urlopen(
File "/usr/lib/python3/dist-packages/urllib3/connectionpool.py", line 755, in urlopen
retries = retries.increment(
File "/usr/lib/python3/dist-packages/urllib3/util/retry.py", line 574, in increment
raise MaxRetryError(_pool, url, error or ResponseError(cause))
urllib3.exceptions.MaxRetryError: HTTPConnectionPool(host='192.168.168.48', port=80): Max retries exceeded with url: /solar_api/v1/GetPowerFlowRealtimeData.fcgi (Caused by ConnectTimeoutError(<urllib3.connection.HTTPConnection object at 0x6ddada90>, 'Connection to 192.168.168.48 timed out. (connect timeout=5)'))
During handling of the above exception, another exception occurred:
Traceback (most recent call last):
File "/var/www/html/openWB/packages/modules/common/configurable_device.py", line 36, in __call__
self.__updater(components_list)
File "/var/www/html/openWB/packages/modules/devices/fronius/device.py", line 60, in update_components
component.update()
File "/var/www/html/openWB/packages/modules/devices/fronius/counter_s0.py", line 28, in update
response = session.get(
File "/usr/lib/python3/dist-packages/requests/sessions.py", line 555, in get
return self.request('GET', url, **kwargs)
File "/var/www/html/openWB/packages/modules/common/req.py", line 16, in request
return super().request(method, url, *args, **kwargs)
File "/usr/lib/python3/dist-packages/requests/sessions.py", line 542, in request
resp = self.send(prep, **send_kwargs)
File "/usr/lib/python3/dist-packages/requests/sessions.py", line 655, in send
r = adapter.send(request, **kwargs)
File "/usr/lib/python3/dist-packages/requests/adapters.py", line 504, in send
raise ConnectTimeout(e, request=request)
requests.exceptions.ConnectTimeout: HTTPConnectionPool(host='192.168.168.48', port=80): Max retries exceeded with url: /solar_api/v1/GetPowerFlowRealtimeData.fcgi (Caused by ConnectTimeoutError(<urllib3.connection.HTTPConnection object at 0x6ddada90>, 'Connection to 192.168.168.48 timed out. (connect timeout=5)'))
2024-11-04 15:04:55,154 - {modules.common.utils.component_parser:33} - {ERROR:MainThread} - Fehlerstatus in Komponente Fronius Wechselrichter. Werte werden nicht aktualisiert.
2024-11-04 15:04:55,172 - {modules.common.utils.component_parser:33} - {ERROR:MainThread} - Fehlerstatus in Komponente Netz-Ex-/Import. Werte werden nicht aktualisiert.
2024-11-04 15:04:55,283 - {control.counter_all:107} - {ERROR:MainThread} - Ungültiger Hausverbrauch: -110.75W, Berücksichtigte Komponenten neben EVU [{'id': 1, 'type': 'inverter', 'children': []}, {'id': 2, 'type': 'cp', 'children': []}]
2024-11-04 15:05:02,232 - {helpermodules.setdata:338} - {ERROR:Setdata} - Payload ungültig: Topic openWB/set/pv/1/get/yearly_exported, Payload -35554560.40261862 liegt in keinem der angegebenen Wertebereiche.
2024-11-04 15:05:02,235 - {helpermodules.setdata:338} - {ERROR:Setdata} - Payload ungültig: Topic openWB/set/pv/get/yearly_exported, Payload -35554560.40261862 liegt in keinem der angegebenen Wertebereiche.
2024-11-04 15:05:04,981 - {modules.common.simcount._simcount:51} - {WARNING:device1} - Time difference between previous state and current state is too large. Set time difference to control interval.
2024-11-04 15:08:25,107 - {modules.common.fault_state:49} - {ERROR:device1} - Netz-Ex-/Import: FaultState FaultStateLevel.ERROR, FaultStr Die Verbindung zum Server http://192.168.168.48/solar_api/v1/GetPowerFlowRealtimeData.fcgi ist fehlgeschlagen. Überprüfe Adresse und Netzwerk., Traceback:
- Dateianhänge
-
- PV-Laden 2024-11-04.jpg
- (344.67 KiB) Noch nie heruntergeladen
openWB series2 standard+, PV ohne Speicher
-
- Beiträge: 3778
- Registriert: Di Feb 25, 2020 9:23 am
- Has thanked: 3 times
- Been thanked: 23 times
Re: PV-Laden unterbricht und startet immer wieder neu
Der Ladevorgang wurde unterbrocken, da der Fronius WR nicht geantwortet hat und keine EVU-Werte vorlagen. Also alles richtig gelaufen. Bleibt die Frage, warum Dein WR nicht erreichbar war.
Re: PV-Laden unterbricht und startet immer wieder neu
Danke. Dann weiß ich, dass ich dort suchen muss.
Nur komisch, dass seitens Fronius-Graph nichts von totalem Aussetzer zu sehen ist.
Entweder hat er da Daten an das Portal übermittelt oder der Graph ist da geglättet, da die Datenauflösung zu grob ist und daher die beiden Dellen sind.
Nur komisch, dass seitens Fronius-Graph nichts von totalem Aussetzer zu sehen ist.
Entweder hat er da Daten an das Portal übermittelt oder der Graph ist da geglättet, da die Datenauflösung zu grob ist und daher die beiden Dellen sind.
- Dateianhänge
-
- Fron.jpg
- (182.15 KiB) Noch nie heruntergeladen
openWB series2 standard+, PV ohne Speicher
-
- Beiträge: 7735
- Registriert: Mo Okt 08, 2018 4:51 pm
- Has thanked: 14 times
- Been thanked: 30 times
Re: PV-Laden unterbricht und startet immer wieder neu
Mit Graphen kann man viel "kaschieren", zumal cloudbasiertes Logging meist nicht sonderlich präzise arbeitet (Datensparsamkeit).
Im openWB-Main-GUI sieht man über 2h lang alle 10s die Wahrheit, sofern normale Regelschleifenzeit eingestellt ist. In den Auswertungen sind es dagegen schon 5min-Intervalle.
Im openWB-Main-GUI sieht man über 2h lang alle 10s die Wahrheit, sofern normale Regelschleifenzeit eingestellt ist. In den Auswertungen sind es dagegen schon 5min-Intervalle.
Re: PV-Laden unterbricht und startet immer wieder neu
Dachte ich mir schon.
Dass meine Box immer mal wieder ganz aus ist (anderes Thema von mir), hat damit aber nichts zu tun, oder?
Dass meine Box immer mal wieder ganz aus ist (anderes Thema von mir), hat damit aber nichts zu tun, oder?
openWB series2 standard+, PV ohne Speicher
